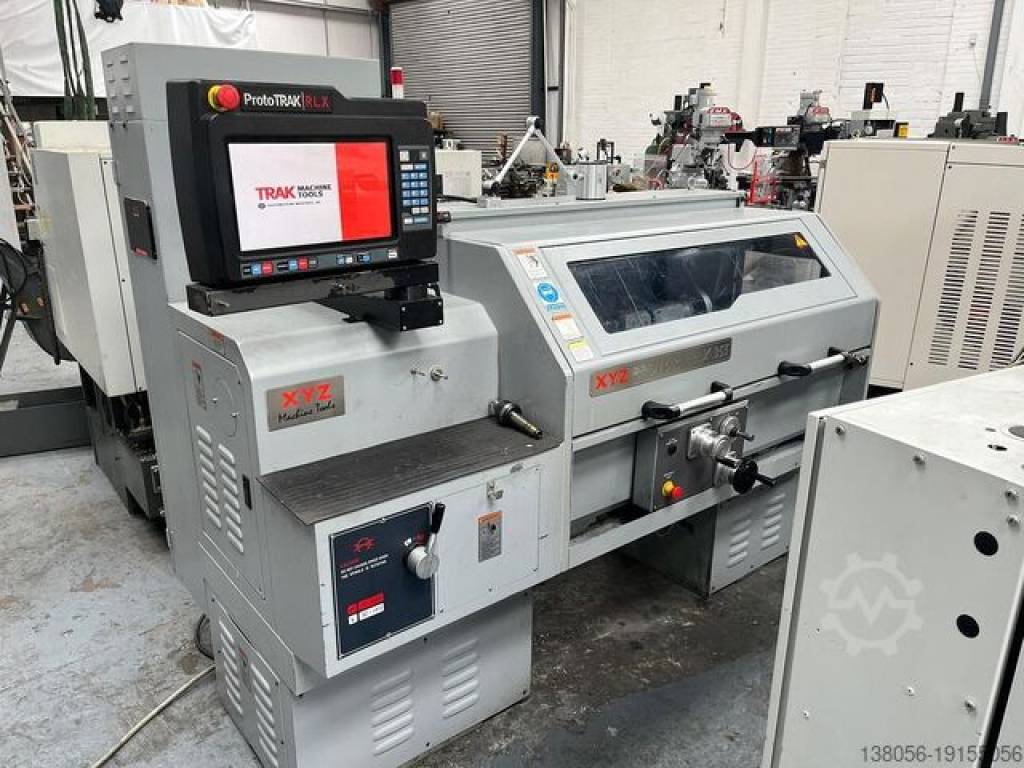

2019 XYZ RLX 355 x 1000 CNC / Manual Lathe in superb condition with RLX Control, electronic handwheels, tracking facility, 3-jaw chuck, quick-change tool post, and is presented in immaculate condition.

Machine Specification:
-----

CONTROL

RLX Control

Conversational programming

Full manual and CNC operation

Electronic handwheels for manual control

Tracking facility for job run-through

-----

CAPACITY

Chuck size (main spindle): 6”

Maximum swing over bed: 360 mm

Maximum swing over cross slide: 225 mm

Maximum cutting length: 900 mm

Distance between centres: 1,000 mm

Max cutting diameter (at cross slide): 225 mm

-----

MAIN SPINDLE

Spindle bore: 52 mm

Spindle nose: D1-6 camlock

Spindle taper: MT4 (with sleeve)

Maximum spindle speed: 4,000 rpm

Spindle motor output (30-minute rating): 5.75 kW (7.5 hp)

-----

TAILSTOCK

Tailstock quill travel: 150 mm

Tailstock taper: MT4

Tailstock quill diameter: 60 mm

-----

Bwobxswkwduo Ri Tq Ijp
FEED AXES

Travel (X axis): 185 mm

Travel (Z axis): 1,000 mm

Rapid traverse (X axis): 6 m/min

Rapid traverse (Z axis): 8 m/min

-----

ACCESSORIES

3-jaw chuck (standard)

Quick-change tool post (standard)

Electronic handwheels (standard)

RLX tracking function (standard)

-----

MACHINE SIZE

Machine dimensions (L x W x H): 2,300 mm x 1,250 mm x 1,750 mm

Machine weight: Approx. 2,600 kg

Total power consumption: Approx. 7.5 kVA
Control: ProtoTrak RLX
Spec: Spindle Bore 52 mm | Max Swing 360 mm | Travel mm X185 Z1000 mm
Accessories: Electronic Hand wheels, Twin speed gearbox, Conversational control, Quick change tool post
