Bitzer Ecoline 4HE-25Y-40P Description
Bitzer Ecoline 4HE-25Y-40P
Complete Package with BITZER 4HE-25Y-40P Compressor + Dehumidification Unit + Dehumidification Condenser + Operating Panels

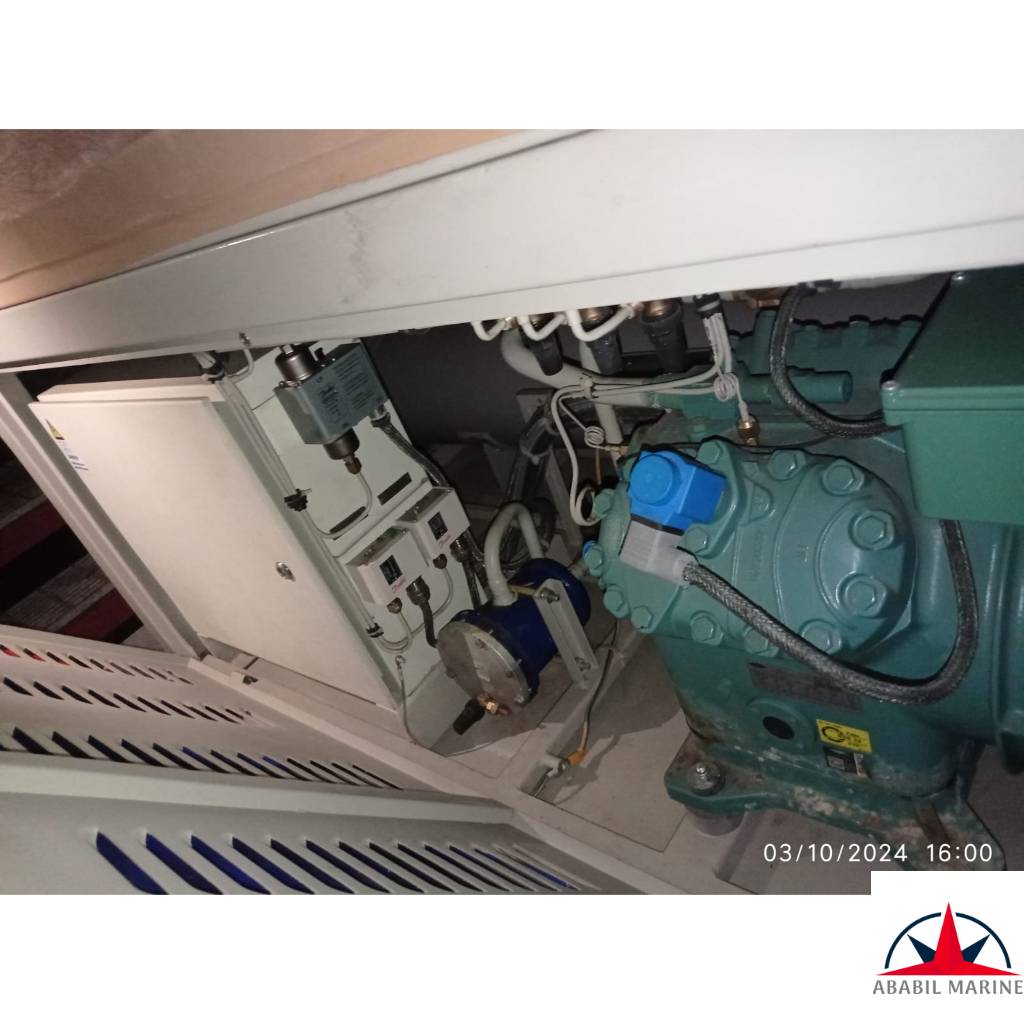

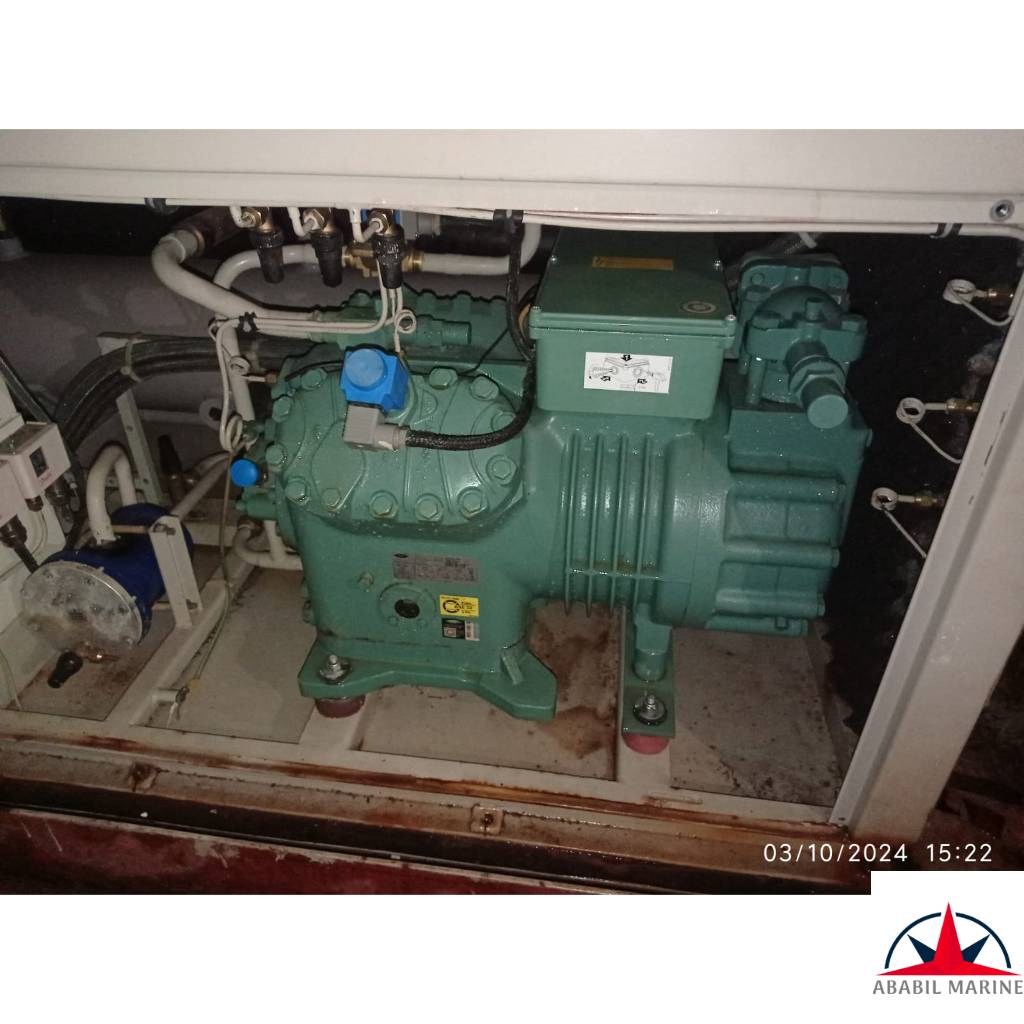

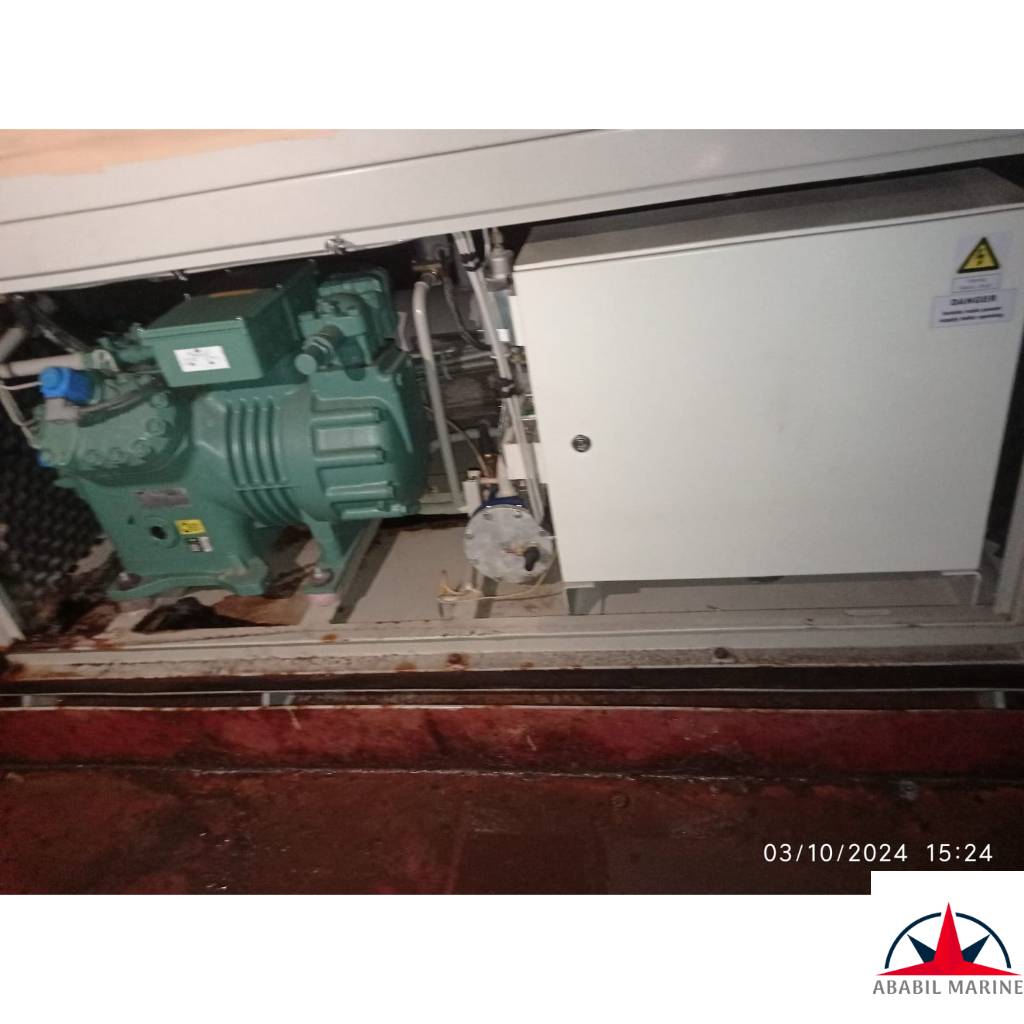

BITZER 4HE-25Y-40P SPECS AS BELOW: -
MAKE: BITZER
TYPE: 4HE-25Y-40P
YOM: 2015
VOLTS: 380-420/440-480
HZ: 50/60
CAPACITY: 73,7/88,8 m3/H
RPM: 1450/1750
BAR: 19/32
WEIGHT: 194 KG
IP: 54

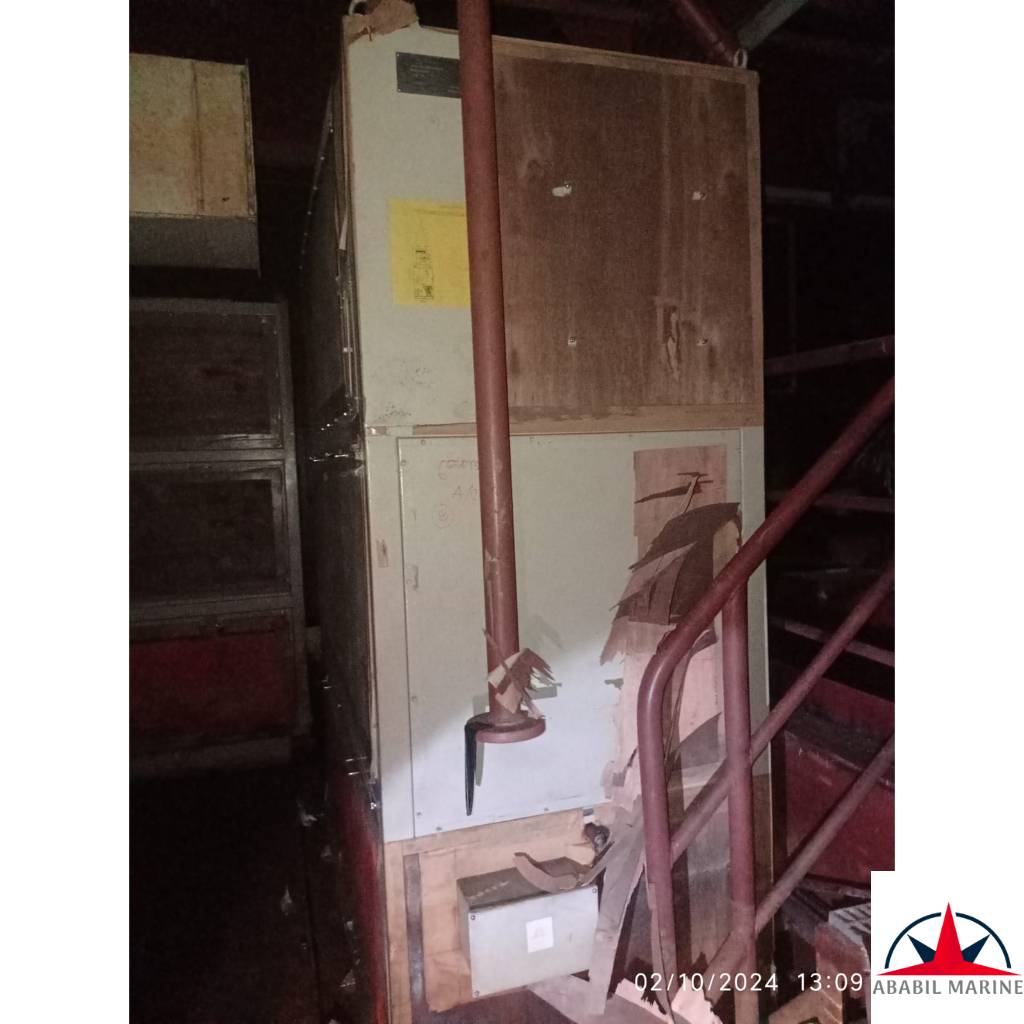

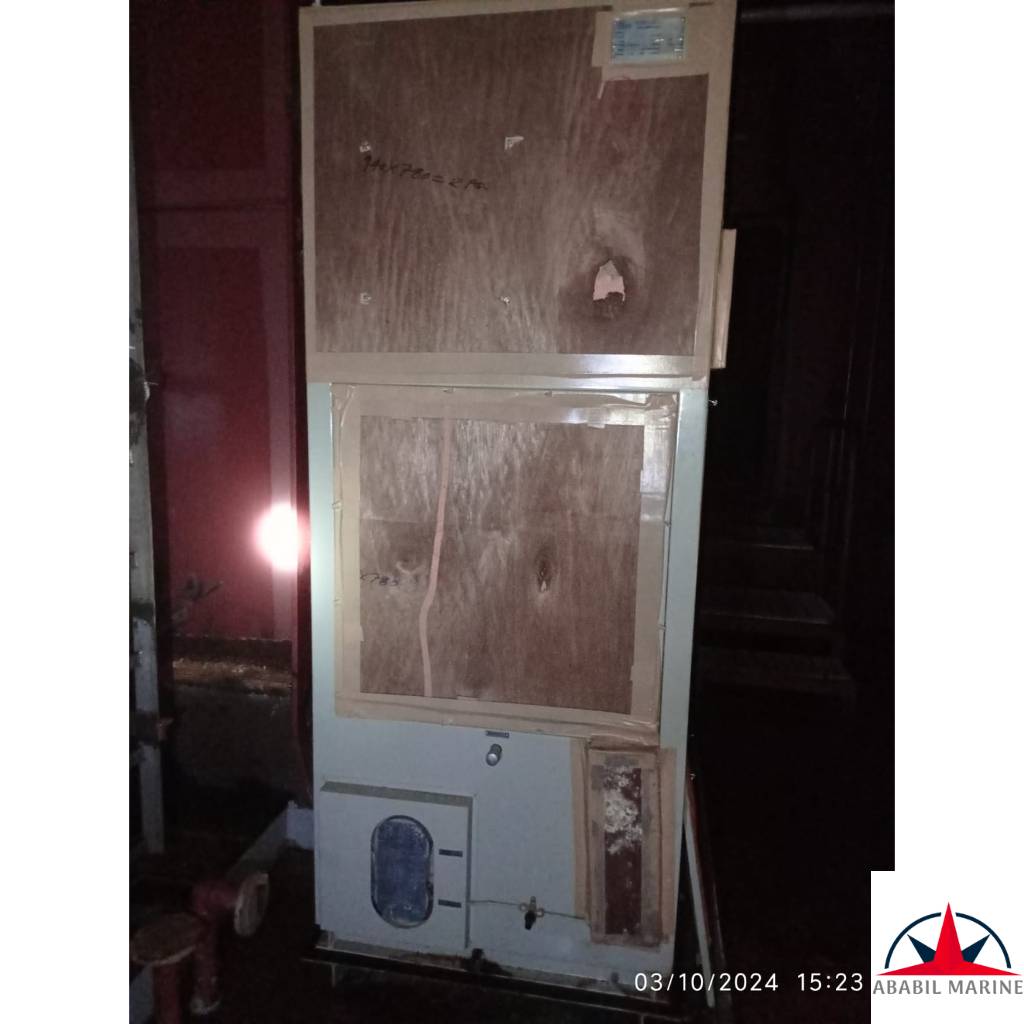

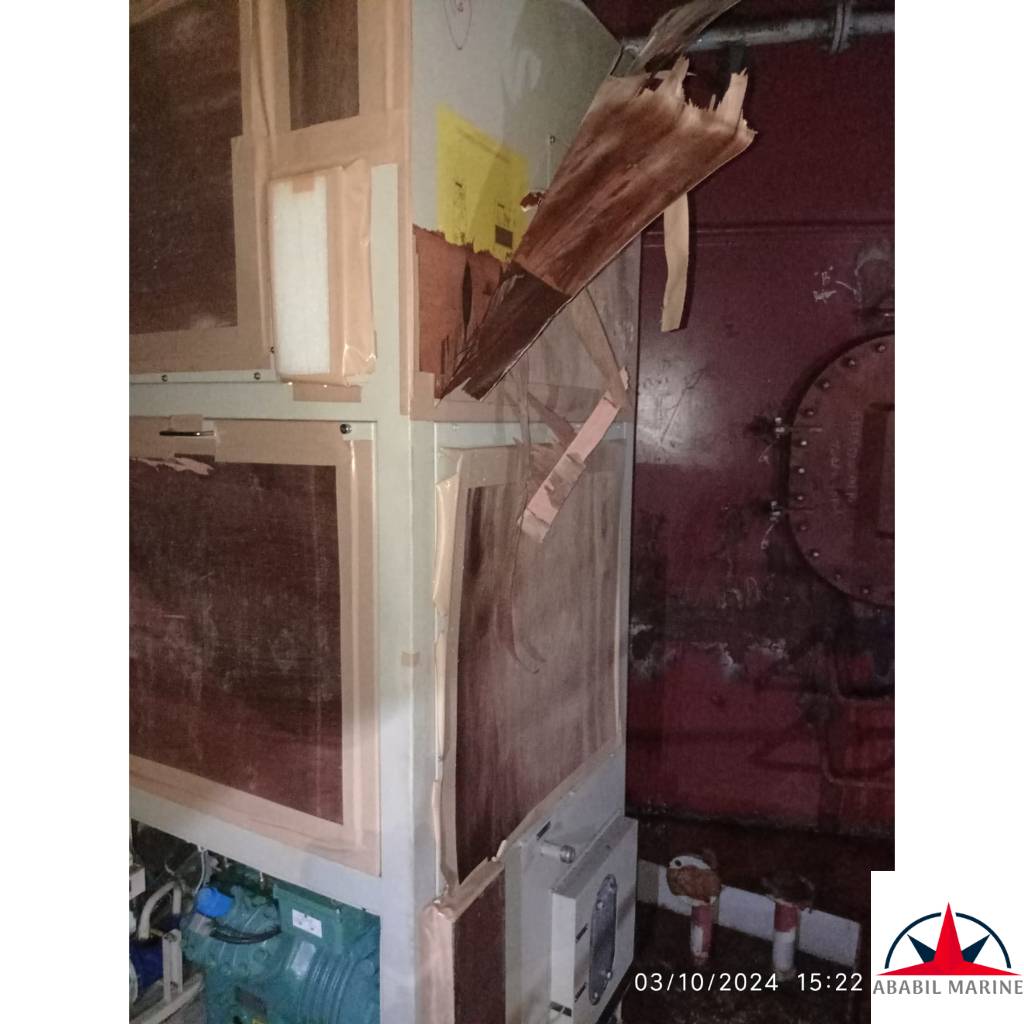

DEHUMIDIFICATION UNIT AS BELOW: -
TYPE: PAC-70
POWER SUPPLY: AC 440V,60Hz,3ph
WEIGHT: 1300 Kg
CAPACITY: 70KW
POWER: 22 KW
AIR FLOW RATE: 9600 m3/H
DIMENSIION: 1800x950x2350 mm
YOM: 2015
DEHUMIDIFICATION CONDENSOR UNITS AS BELOW: -
MAKER: JIANGSU YONGSHENG
WEIGHT: 225/250 Kg
MEDIUM: R407C/FRESH WATER
DESIGN TEMPERATURE: 60C/ 45C
DESIGN PRESSURE: 1900kPa, 19.4kgf/cm2 / 500kPa, 5.1kgf/cm2
WORKING PRESSURE: 2400kPa, 24.5kgf/cm2 / 500kPa, 5.1kgf/cm2
THICKNESS: 1.0mm
NITROGEN TEST PRESSURE: 2400 kPa, 24.5kgf/cm2
Qty available: 8 Complete Packages
Condition: NEW
We At ABABIL MARINE, can provide Complete REF- COMPRESSOR, NEW as well as Second Hand.
