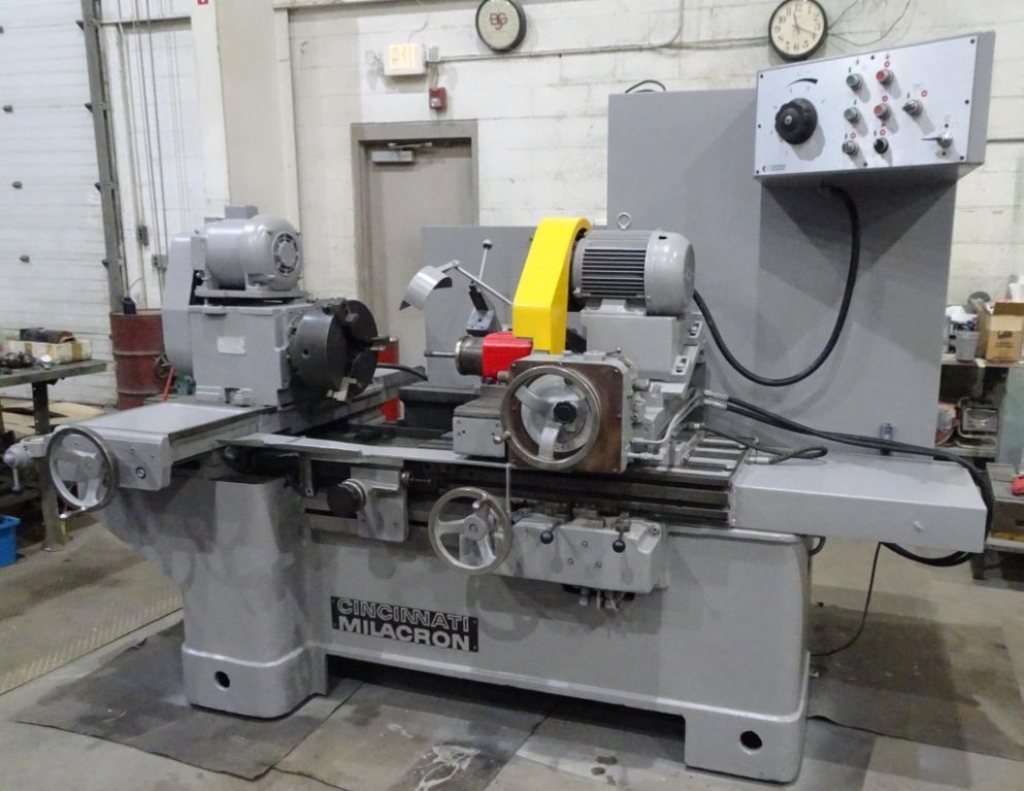

CINCINNATI MILACRON HEALD 273A Universal Internal Grinder Description
CINCINNATI MILACRON HEALD 273A Universal Internal GrinderFEATURES
(1) USED HEALD MODEL 273-A UNIVERSAL GRINDER
Serial No. G3384 (UK Built) New: 1975
*Extended Bed – Front of Wheelhead Dovetail
To face of Workhead Flange: 42?
Swing over Table: 20?
Swing, Workhead Swivelled 90 degrees: 16?
Angular adjustment of Workhead: 90 Degrees Workhead Cross Slide Travel: 11 1/2?, Power or Manual Table Travel: 20? Max.
Wheelhead Cross Slide Travel: 1 1/2?
Table Speed Range: 0 to 18 FPM
Rapid Traverse of Table: 18 FPM
Workhead Speeds from 0 to 500 RPM, Variable Equipped with:
Coolant System
Red Head Grinding Spindle
12? 3-Jaw Chuck
Dressing attachment
Hydrostatic Ways
Electrical Motors & Controls
Dimensions: FB X RL – 62? X 104?
Height: 77?
Est. Weight: 7,000#
