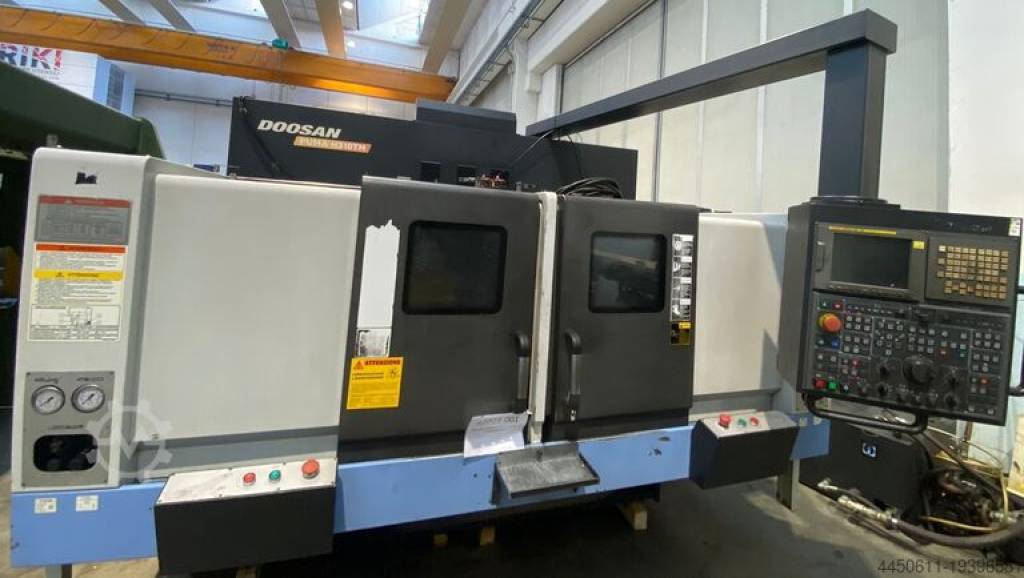

Doosan PUMA H-310/TM CNC horizontal lathe, year 2008, equipped with FANUC Series 18i-TB control, ideal for precision machining of medium-sized workpieces with dual turret machining capability.

Main technical specifications:

Maximum turning diameter: Ø 410 mm
Maximum turning length: 230 mm
Recommended turning diameter: Ø 255 mm
Maximum distance between spindle centers: 500 mm

Axis travels:
X: 210 mm
Z: 230 mm
Crobx Ri Towt S Ugemqsd
Rapid traverse X/Z: 24,000 mm/min

Main spindle:
Chuck: Ø 250 mm
Spindle nose: ASA A2-8
Speed: 3,500 rpm
Power: 15/18.5 kW

Turret system:
Number of turrets: 2
Stations per turret: 12

Driven tools:
Speed: 3,000 rpm
Power: 4 kW
Tool dimensions: 25x25 mm (turning) / Ø 40 mm (boring)

Included accessories:
Chip conveyor
Coolant tank with washing pump
External high-pressure pump
Various fixed and driven tool holders
Manuals, electrical diagrams, CE declaration
