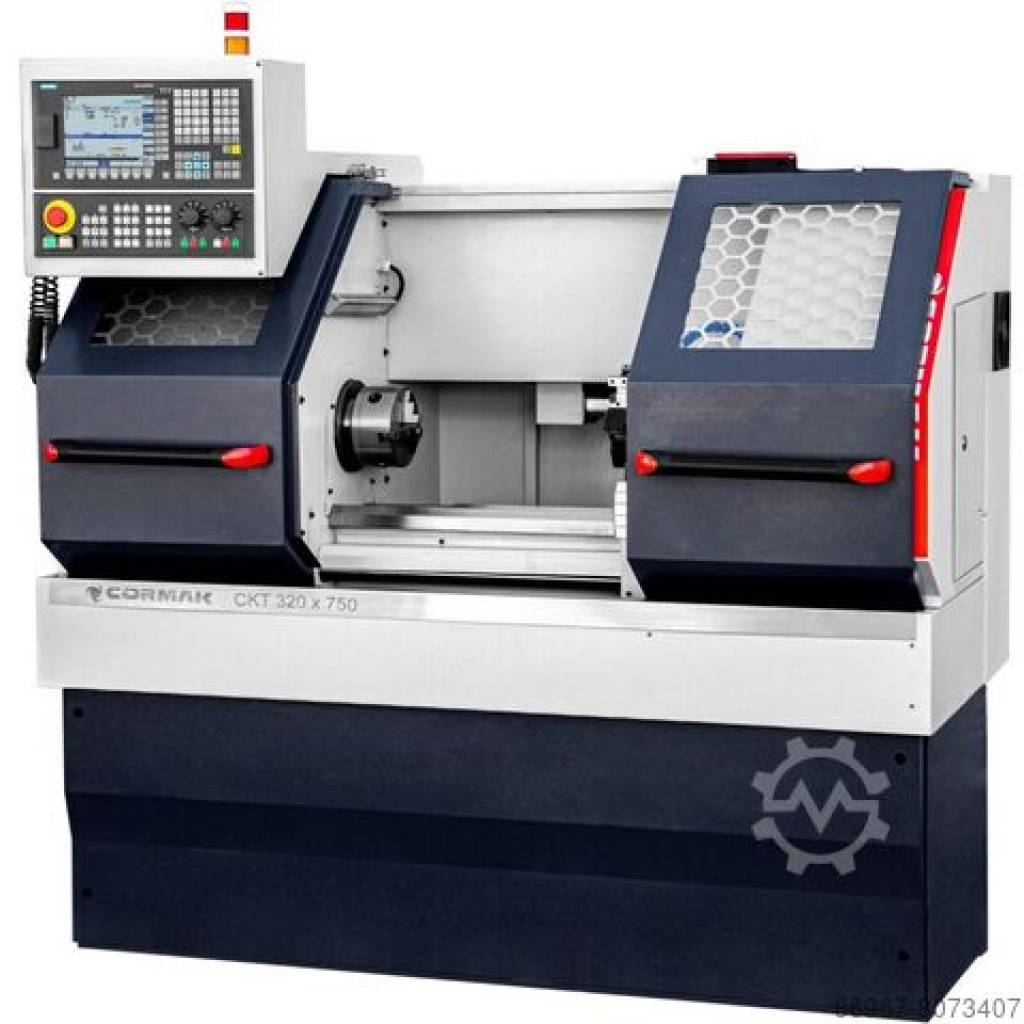

CNC Lathe 320x750 Hydr. Chuck Tailstock CORMAK CNC CKT 320x750 Hydraulic SAH6 Description
CNC Lathe 320x750 Hydr. Chuck Tailstock
CORMAK CNC CKT 320x750 Hydraulic SAH6
Description
These lathes are ideal for efficient and precise machining of not only metal but also other materials. Features involve machining internal and external cylindrical, frontal, tapered and semicircular surfaces as well as threading. The bed is a solid cast iron, resistant to vibrations. Induction-hardened and ground guides.
Technical data
SWING OVER BED 320 mm
SWING OVER CROSS SLIDE 160 mm
DISTANCE BEETWEN CENTERS 750 mm
MAXIMUM ELEMENT LENGTH 1000 mm
SPINDLE SPEED 100–2500 rpm
SPINDLE BORE 46 mm
SPINDLE TAPER MT5
NUMBER OF TOOLS 6
TOOLS SIZE 16×16 mm
MAXIMUM SHAFT DIAMETER IN BORE 44 mm
TAILSTOCK TAPER MT3
MAXIMAL TAILSTOCK TRAVEL 100 mm
MOTOR POWER 3 kW
DIMENSIONS 2370×1420×2000 mm
NET WEIGHT 950/1300 kg
Available equipment
SINUMERIK 808D control system in Polish and English
SIEMENS servomotors
3-jaw hydraulic chuck
6-position turret head
soft jaw kit
hydraulic tailstock
cooling system
automatic gear and guide lubrication system
24V halogen lighting
Polish and English technical and engineering documentation
EC declaration
