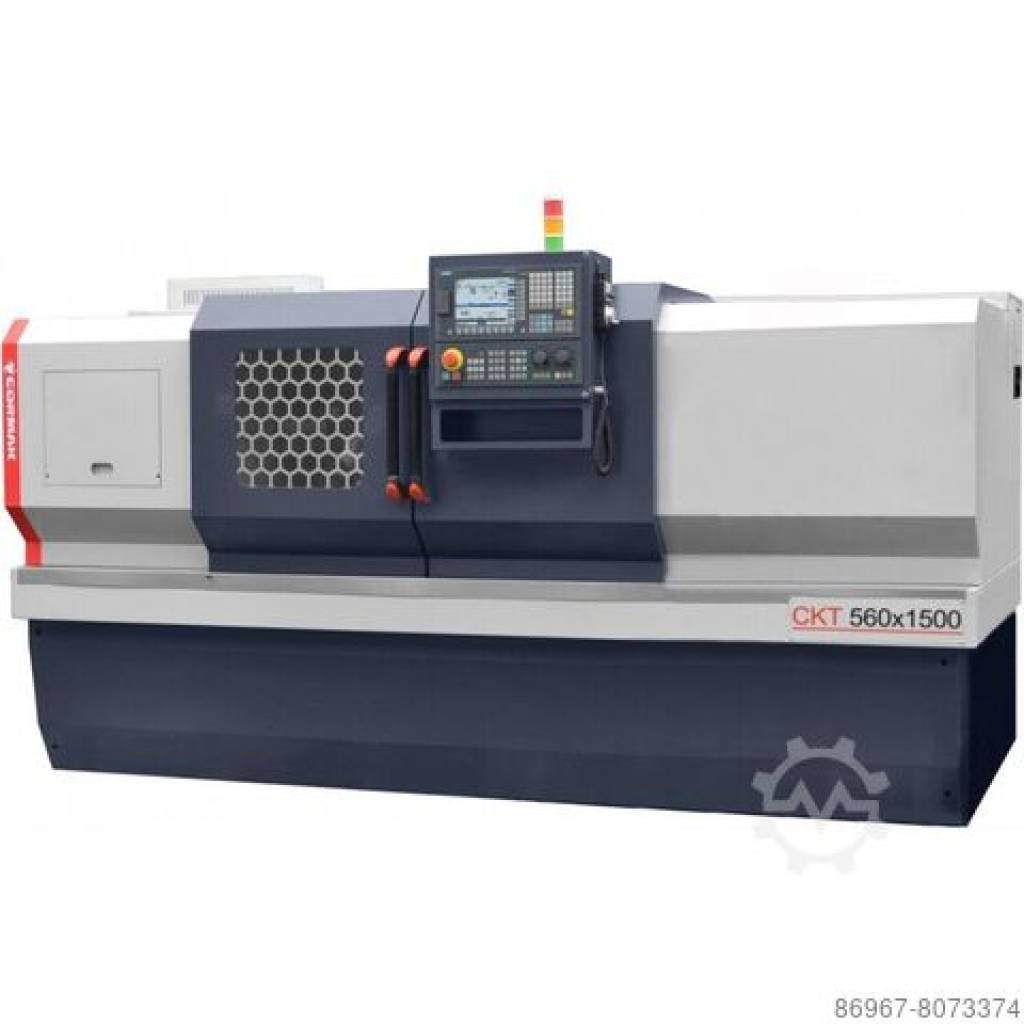

CNC Lathe 560x1500 Hydr. Chuck Tailstock CORMAK CNC CKT 560x1500 Hydraulic

Efficient lathe with a flat bed with a wide range of applications, dedicated to serial and unit production. The rigid construction of the lathe and massive hardened and ground guideways guarantee stability, turning accuracy and high repeatability of machining large-size details.

Technical parameters
TURNING DIAMETER OVER BED 560mm
TURNING DIAMETER OVER SUPPORT 340mm
MAXIMUM ITEM LENGTH 1500mm
SPINDLE SPEED 100-800rpm
SPINDLE BORE 90mm
BED WIDTH 430mm
SPINDLE A2-11
NUMBER OF TOOLS 8
TOOL SIZE 25X25mm
TAILSTOCK MT 5
MAXIMUM TAILSTOCK TRAVEL 150mm
ENGINE POWER 11kW
DIMENSIONS 3770x1500x1900mm
NET WEIGHT 4150 kg

Available equipment

SINUMERIK 808D control in Polish
SIEMENS servo drives
hydraulic 3 jaw lathe chuck
8-station turret
set of soft jaws
hydraulic tailstock
cooling system
automatic lubrication system for gears and guides
24V halogen lighting
manual in Polish & English
EC declaration
