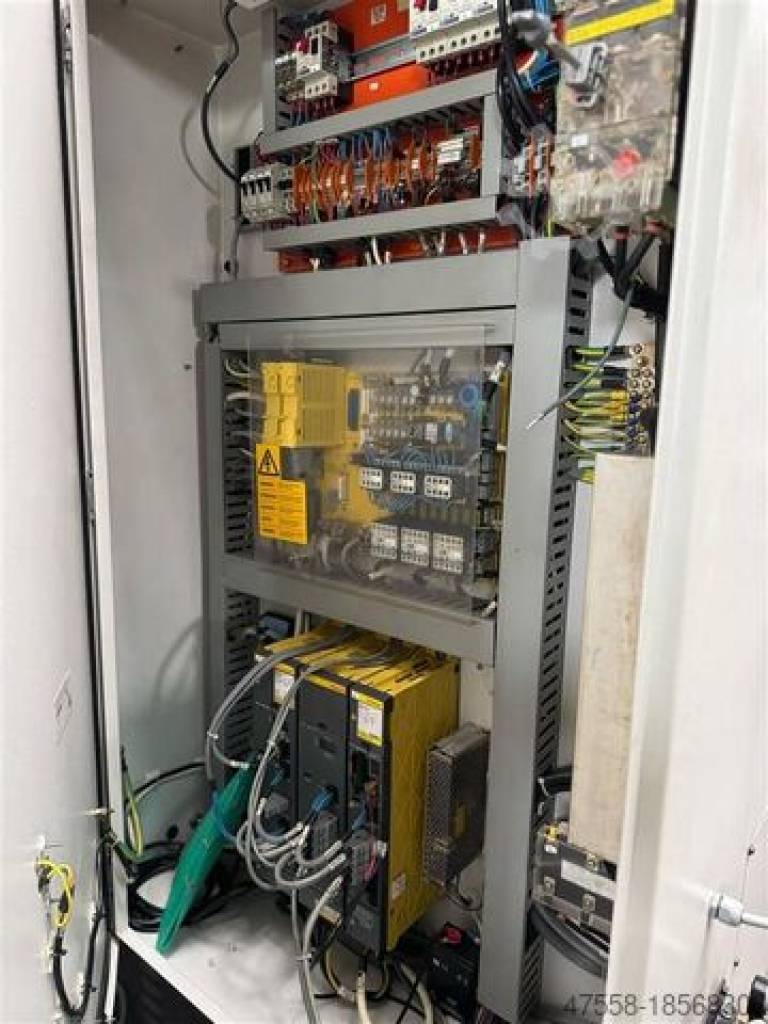

CNC Lathe COLCHESTER Combi 4000 Description
CNC Lathe
COLCHESTER Combi 4000
Description
Technical details:
turning diameter over bed: 554 mm
turning dia. over face-slide: 370 mm
turning length: 1000 mm
centre distance: 1100 mm
control: Fanuc 210i
longitudinal traverse (z-axis): 1000 mm
Transversal stroke (x-axis): 290 mm
revolution per minute: 16 - 1800 U/min
spindle stroke: 178 mm
feed:: 10 m/min.
spindle passage: 104 mm
spindle nose: D1 - 11
tailstock taper ISO: 6 MT
spindle drive: 11/7,5 kW
connection voltage: 380 V
electrics - voltage/frequency: 3 Ph / 400 V / 50 Hz V/Hz
total power requirement: 11 kW
Weight approx.: 4,0 t
dimension machine xH: 3,3 x 1,8 x 1,7 m
