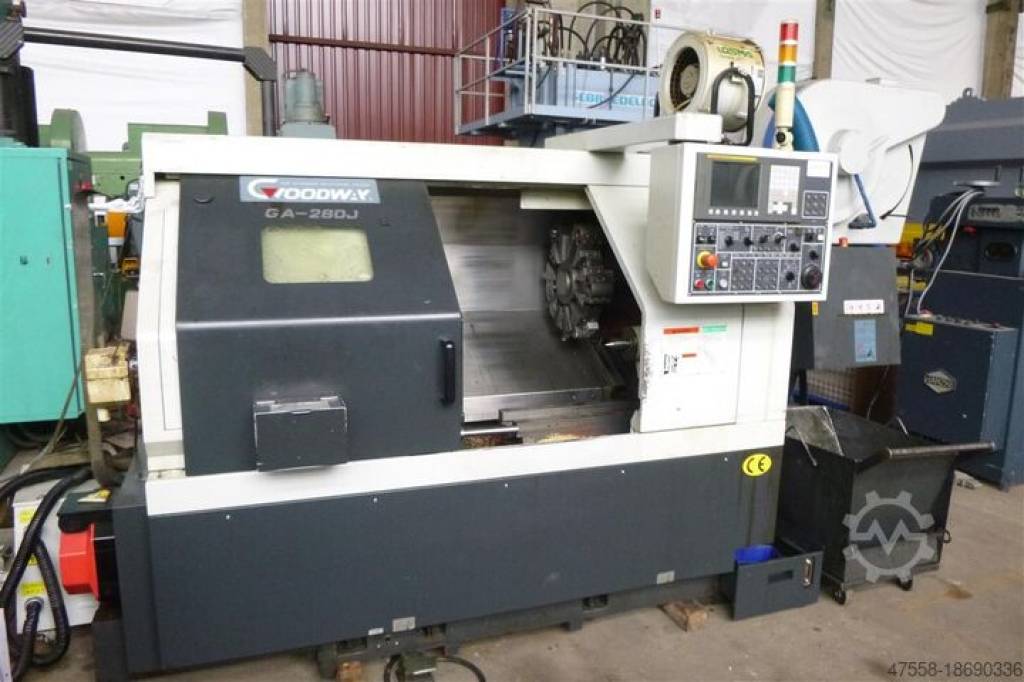

CNC Lathe GOODWAY GA 2800

Technical details:

turning diameter over bed: 400 mm
turning dia. over face-slide: 400 mm
turning length: 1155 mm
max. turning diameter: Ø 350 mm
travel -x axis: 205 mm
travel -z axis: 620 mm
control: Fanuc OI-TC
max. tool weight: 235 (with Tailstock) kg
spindle passage: Ø 80 mm
revolution per minute: steples U/min
rapid traverse X-axis: 20 m/min
rapid traverse Z-axis: 24 m/min
tool turret - number of stations: 12
tailstock taper ISO: MK 4 mm
tailstock quill stroke: 150 mm
total power requirement: 45 kVA
Weight approx.: 4,0 t
dimension machine xH: 2,6 x 1,8 x 2,2 + Transformator m

Equipment:
-3-jaw chuck Ø 260mm with interchangeable jaws inside/outside
-center point in tailstock
-disk turret Ø 480mm
-Hydraulic unit (40 liter capacity)
-Coolant tray (80kg)
-LOSMA exhaust air filter
-Chip tray (30kg)
-Chip conveyor (180kg)
