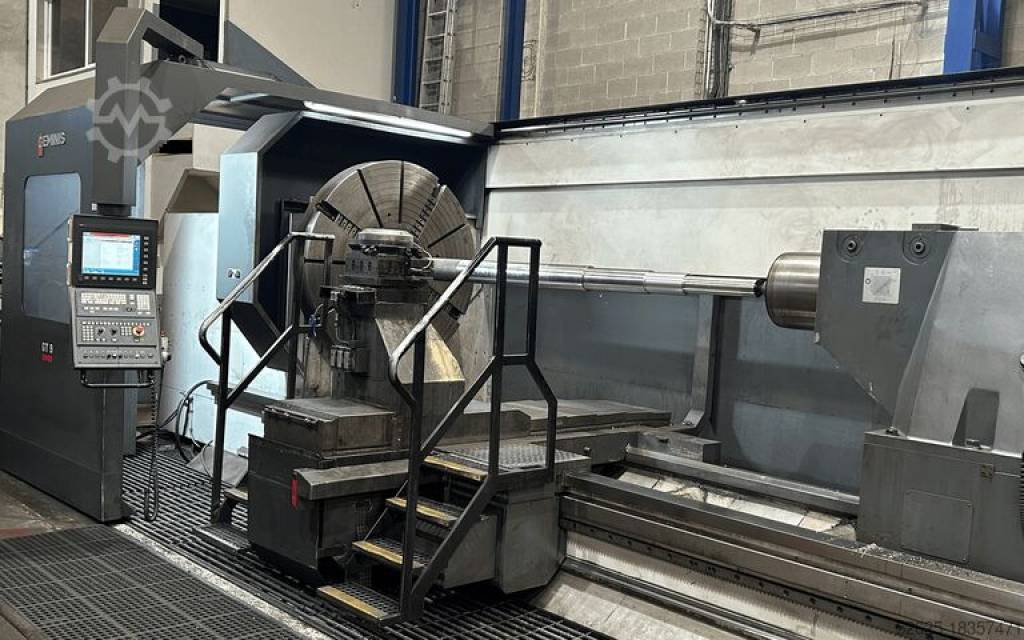

CNC Lathe - Horizontal / Brand: GEMINIS / Type: GEMINIS GT9 G2 (heavy series) / Year of construction: 2015

The machine can be inspected by appointment under power.
Dcjbx Ri Tqjvuih Us Isi

TECHNICAL DATA:
- Max swing over bed: 2.000 mm
- Distance between centers: 8.000 mm
- Height of centres: 1.050 mm
- Swing over slide: 1.600 mm
- Main spindle bore Ø: 150 mm
- Main spindle nose: DIN 55026-15

- Speed range: 4
- Speed range I: 0-80 rpm
- Speed range II: 0-175 rpm
- Speed range III: 0-350 rpm
- Speed range IV: 0-700 rpm

- Cross slide travel: 1.060 mm
- Quill Ø: 400 mm
- Quill travel: 300 mm
- Max. weight allowed between centers: 30 tons
