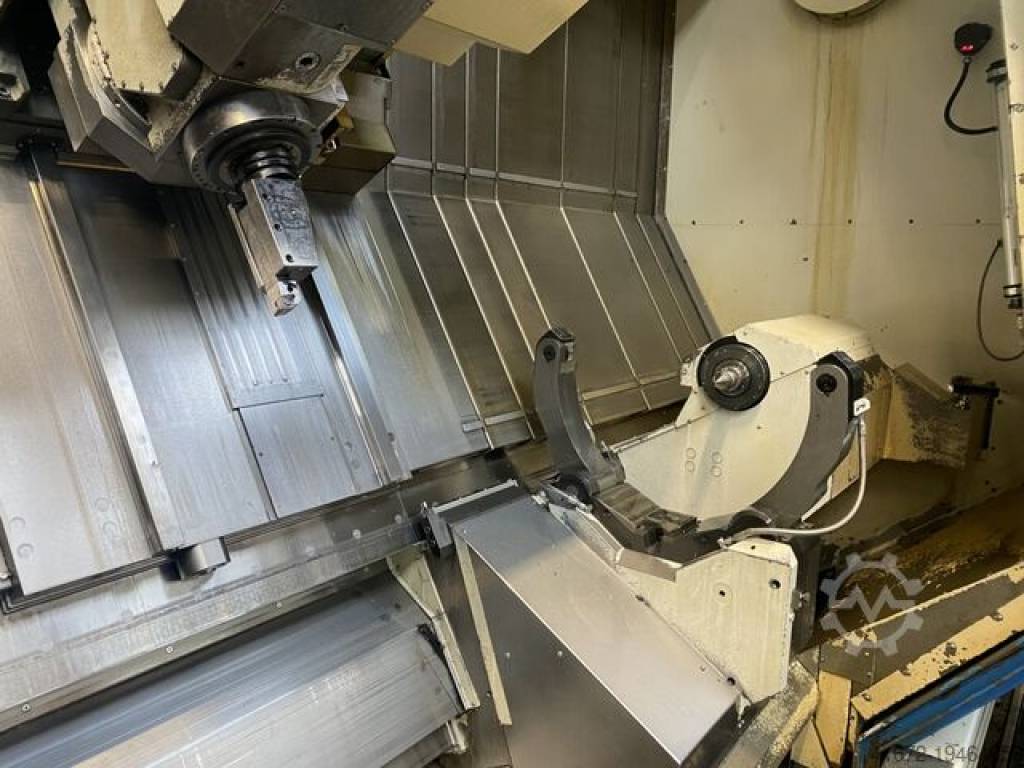

CNC Lathe - Inclined Bed Type NILES-SIMMONS N30 - 3MC-2500

turning length 2500 mm
control Sinumerik 840 C
spindle head A 11
tool numbers 48
swing diameter over bed slide 750 mm
swing over bed 780 mm
c-axis 0,1-30 1/min
diameter of quill 160 mm
taper bore MK 5
tool length - max. 500 mm
Bwebx Ri Tswwarueq Isp
weight of tools max. 15 kg
weight of the machine ca. 12 t
dimensions of the machine ca. 8,4 x 4,0 x 2,5 m
Technical details:
Nominal turning length: 2,500 mm
Swing diameter over bed slide: 750 mm
Swing diameter over bed: 780 mm
Working height: 1,300 mm
Spindle head to DIN 55026: A 11
Bore through: 123 mm
Diameter in front bearing: 200 mm
Oriented spindle stop: 0-359 degrees
Drive power at 100/60 % duty cycle: 37/45 kW
Total speed range: 10-2,500 1/min
Number of speed ranges: 2
Speed range I: 10-775 1/min
Speed range II: 20-2,500 1/min
Max. torque at 60 % duty cycle: 2,500 rpm. Torque at 60 % ED: 2,083 Nm (up to
186 rpm)
