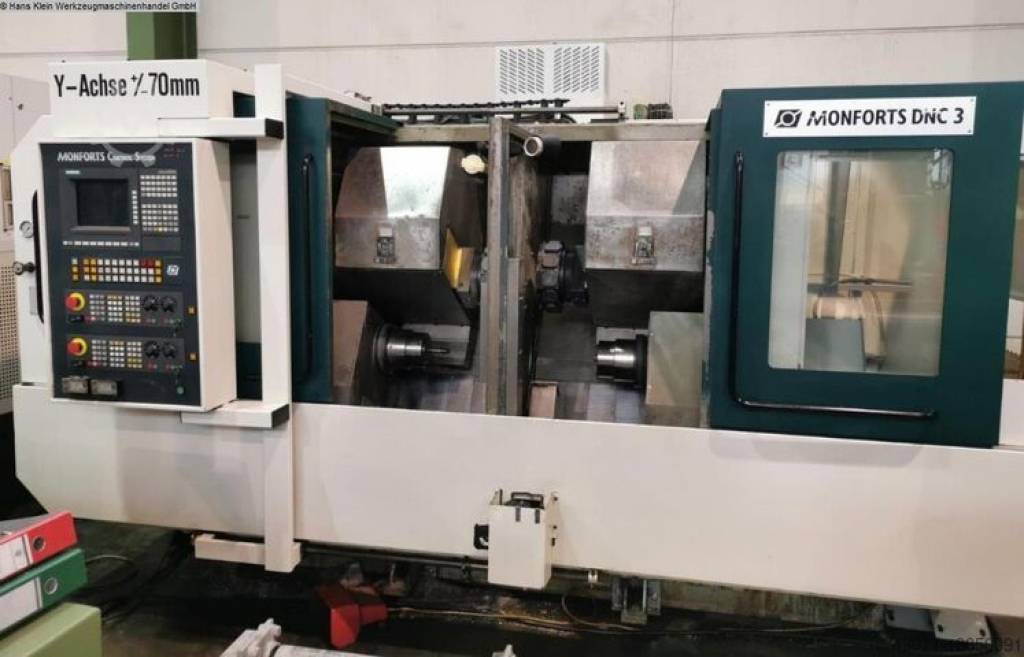

swing diameter 530 mm
turning diameter 150 mm
spindle passage 65 mm
control SIEMENS 840 C
travel x1 175 mm
travel y1 +/- 70 mm
travel z1 433 mm
travel x2 175 mm
travel y2 +/- 70 mm
travel z2 433 mm
spindle turning speed range 38 - 4000 U/min
Dobzq Hr Hjvh Nbno Rskp
C-axis 2 x
tool turret 2 x 12 Pos.
number of driven tool stations 2 x 12
tool shaft (cylinder shaft DIN 69880) VDI 30
total power requirement 33 kW
dimensions of machine L x W x H 3,95 x 2,49 x 2,6 m
Accessories: collet fixtures on main spindle and sub spindle, one collet
for main spindle and one for sub spindle, various tool holders
(for driven tools as well), various spindle reductions,
chip conveyor, coolant
