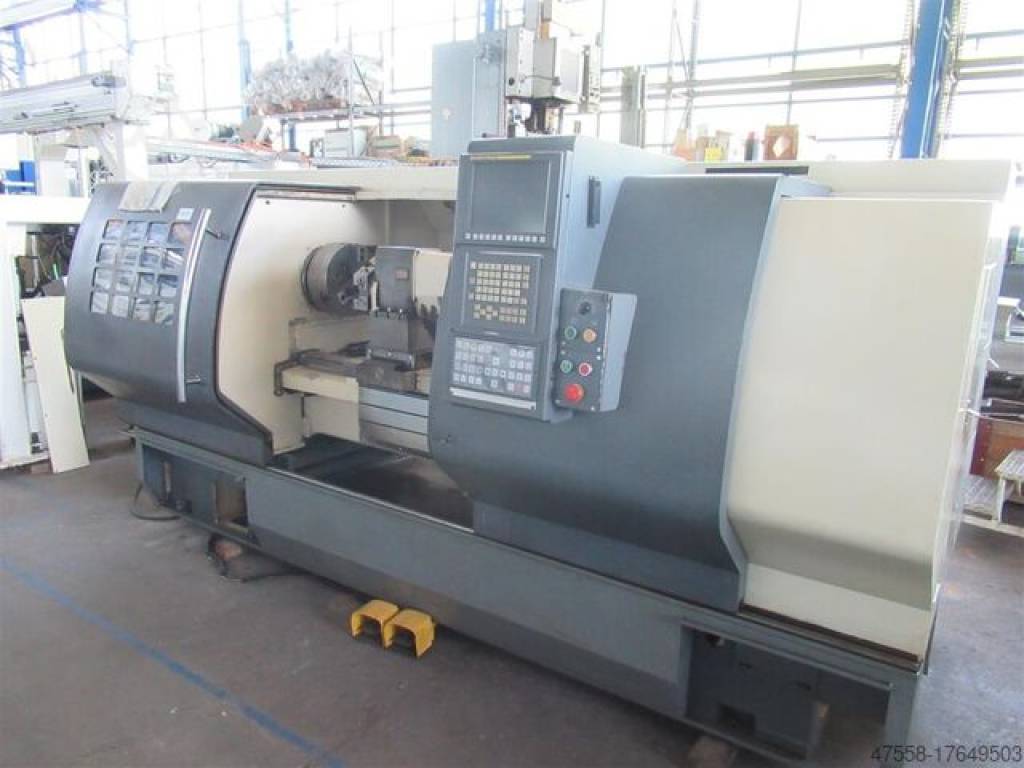

Technical details:

turning diameter over bed: 610 mm
turning dia. over face-slide: 350 mm
swing diameter over bed: 610 mm
centre distance: 1390 mm
control: Fanuc 0i-Mate TC
x-axis: plan: ca. 305 mm
z-axis: längs: ca. 1350 mm
revolution per minute: 22 - 2200 U/min
feed:: X + Z-Achse: 5 / 10 m/min.
spindle bore: Ø 70 mm
tool turret - number of stations: 6
tailstock quill taper MT: MK5
tailstock quill stroke: 150 mm
Weight approx.: 2,7 t
total power requirement: 15 kW
dimension machine xH: 3,7 x 1,7 x 1,7 m
dimensions of hydaulic: 630 x 460 x 900 mm
