CNC Lathe VDF-BOEHRINGER DUS 1000 ti

turning length / mm
turning diameter over bed / mm
turning diameter over slide / mm
control /

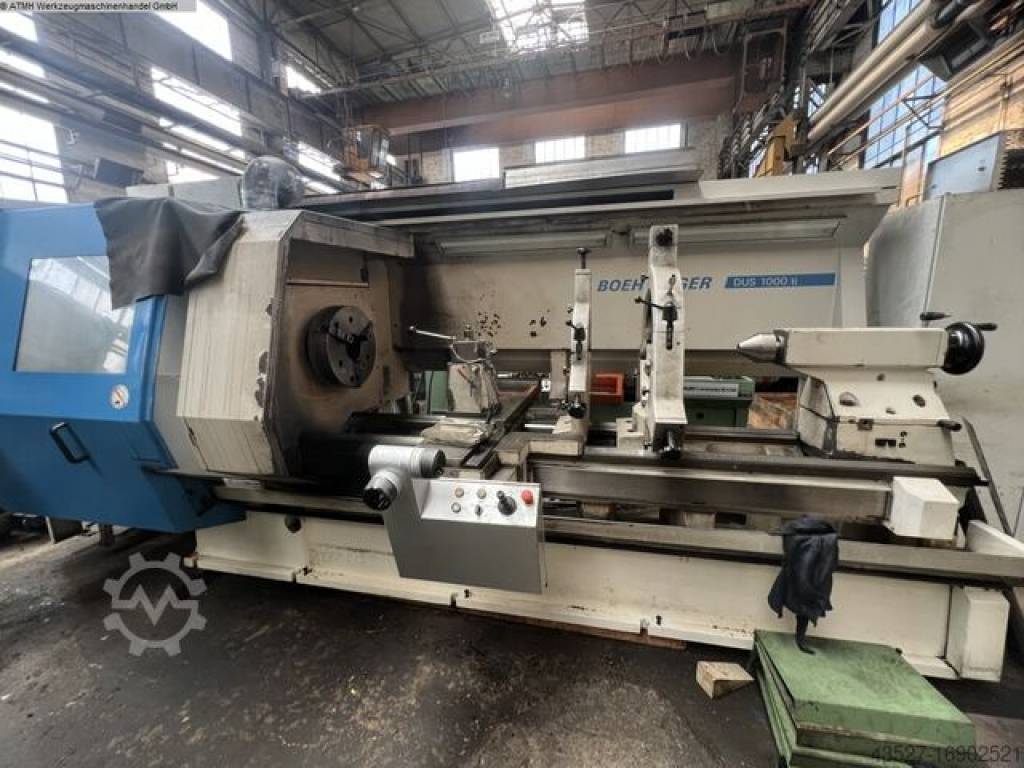

Universal lathe VDF Boehringer DUS 1000 ti

OPTIONAL EQUIPMENT SURCHARGE: C-AXIS MILLING TOOL

Machine no. 2042.6616-05
Year of construction 2004
Turning length approx. 2200 mm
Swing diameter over bed 1,000 mm
Swing diameter over bed 1,000 mm
Centre height over flat track 500 mm
Bed width 560 mm
Bed slide guide length 800 mm
Spindle diameter front bearing 170 mm
Spindle bore 128 mm
Infinitely variable three-phase motor (AC motor)
Drive power 37 kW
Torque max. 4,069 Nm
Total speed range 6.4 - 1,600
Gear stages 2
Dcjboud In Hsx Ri Tq Ioi
Heidenhain control Manualplus 4110, completely renewed approx. 1 to 2 years
ago
renewed
2 lynchets
Equipped with roto power chuck, diameter approx. 500 mm.
