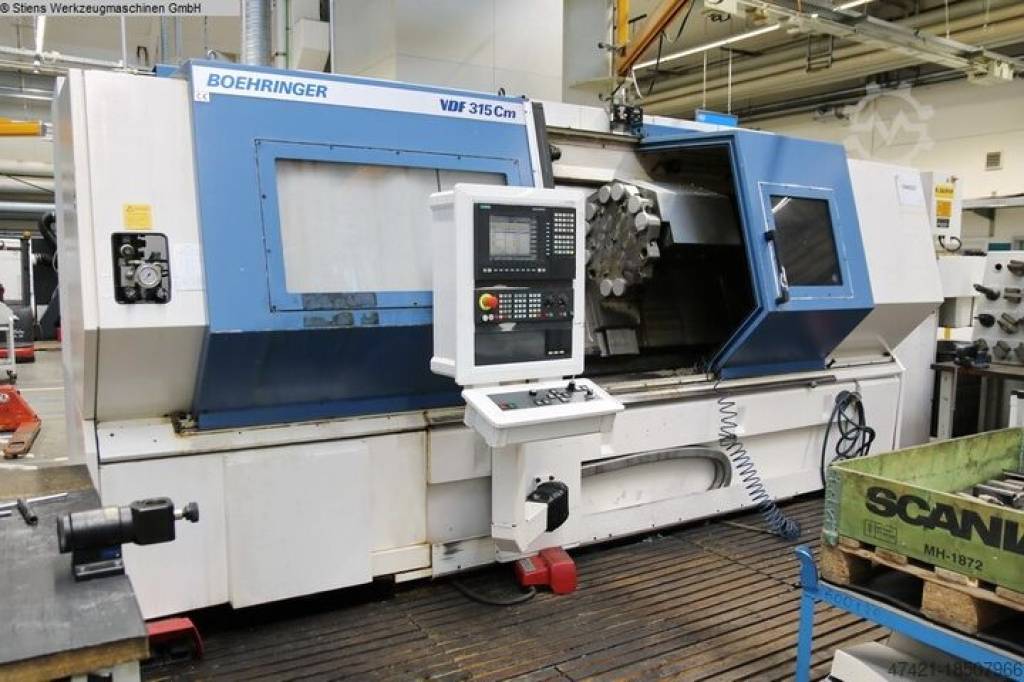

CNC Lathe
VDF BOEHRINGER VDF 315 Cm / DL 2000

Price info

Description

turning diameter max. 480 mm
turning length max. 2.000 mm
control Sinumerik 840 D Siemens
swing diameter max. over bed cover 520 mm
turning speed range - main spindle 7 - 2.800 min/-1
transmission ratio 2
power capacity - main spindel 53 kW
max. Torque 3.456 Nm
spindle nose 11 DIN 55026
Crebx Ri Tevy Ig Tomqsd
chuck diameter 315 mm
spindle bore 103 mm
usable bar diameter 82 mm
x-travel 405 mm
z-travel 2.049 mm
diameter of quill 100 mm
quill stroke 100 mm
tension force 14 kN
capture 30 DIN 2079
rapid traverse 10 m/min
Working speed 0,1 - 10.000 mm/min
feed power 15 kN
number of toolpositions 12 pos.
driven statition 6 pos.
Shank diameter 50 mm
power capacity 5,4 kW
Max. Speed 2.500 / 625 min/-1
max. Torque 25 / 100 Nm
total power requirement ca. 50 kW
weight of the machine ca. 14 t
dimensions of the machine ca. 6,4 x 3,8 x 3,0 m
