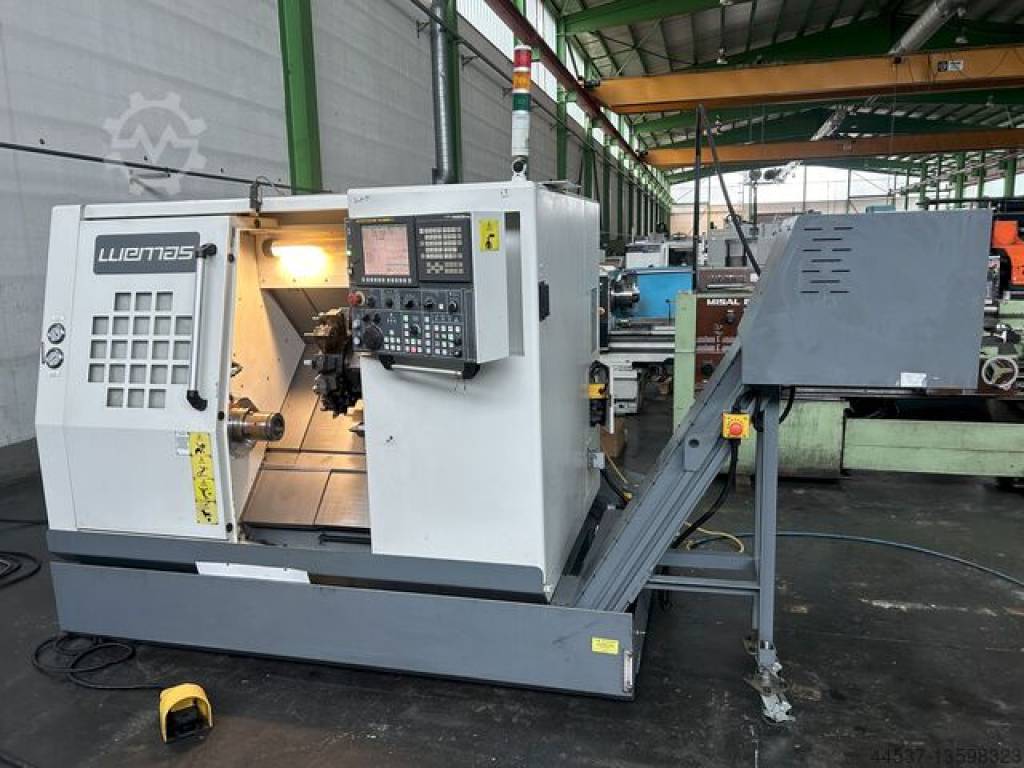

CNC Lathe Wemas Turn 210-52

Information

CNC Lathe Wemas Turn 210-52 Description

CNC Lathe

Wemas Turn 210-52
Description
Fanuc Oi-TD CNC control
12-fold turret head (VDI 30 taper)
collet chuck device
C-axis
driven tools
tailstock
coolant device
chip conveyor
With the machine are 6 driven tools, some fixed tool holders, 3-jaw chuck and collets

Technische Daten / technical details:
max. Umlaufdurchmesser über Bett / max rotary diameter over bed 460 mm
max. Umlaufdurchmesser über Schlitten / max rotary diameter over sledge 328 mm
max. Drehdurchmesser / max. turning diameter 303 mm
max. Drehlänge / max. turning lenght 334 mm
Planweg (x) / cross way (x) 181 mm
Bsbx Riep T Uxxj Tq Iowp
Längsweg (z) / longitudinal way (z) 390 mm
max. Stangendurchmesser / max bar diameter 52 mm
Drehzahlbereich / spindle speed 4500 UpM /rpm
Werkzeugrevolver / turret head 12 fach /holes
Eilgang x,z / rapid feed x,z 30,30 m/min
Antriebsleistung Spindel / drive capacity spindle 9/11 kW
Gewicht der Maschine ca. / weight 3000 kg
Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich -
Technical data, accessories and description of the machine are not binding.
