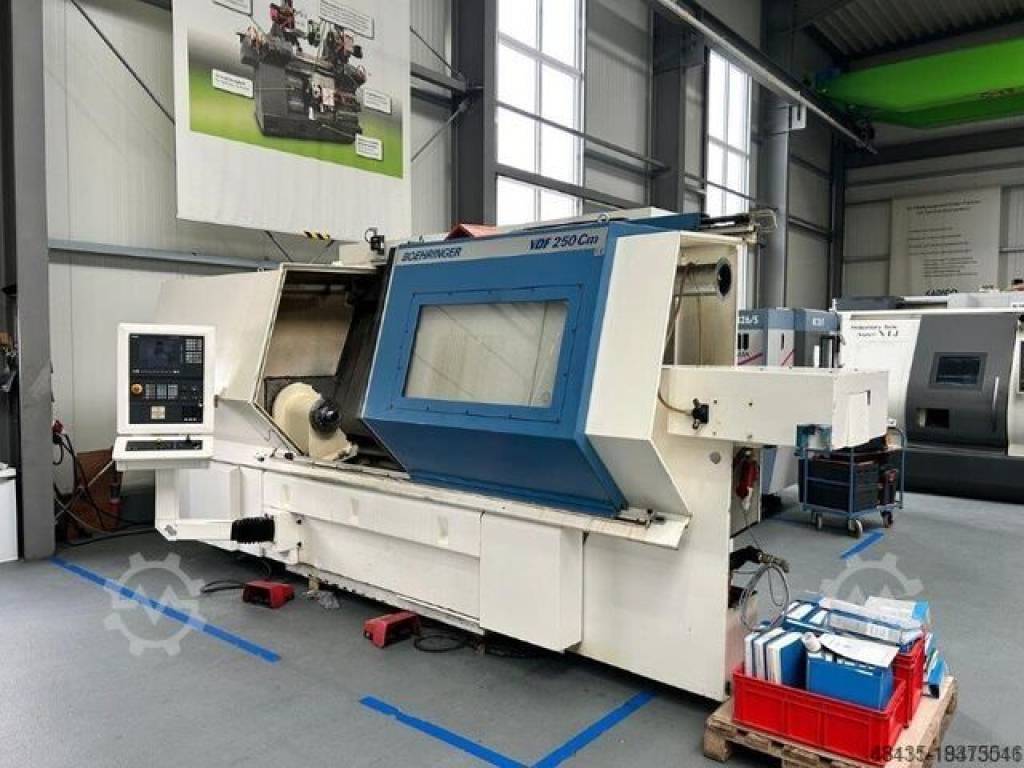

CNC lathe Böhringer VDF 250 Cm

• Turret overhauled in 2021
• Coolant pump upgraded to higher pressure/flow rate in 2021
• Draw tube replaced and spindle head newly mounted and ground in 2022
• Prepared for automatic loading of parts via robot cell

Control: CNC control including Siemens 840 D color screen

TECHNICAL DATA
Maximum swing diameter: 550 mm
Maximum turning diameter: 480 mm
Turning length: 1000 mm
Spindle bore: 78 mm
Drive power (50%): 53 kW
Speed range (single stage): 30 – 4000 rpm
Crsbx Rjwwkx Eji Tmqod
Drum turret
Number of stations: 12, of which powered: 6
Tool shank diameter: 40 mm
Speed range (two-stage): 20 – 2500 rpm
Tailstock (hydraulic quill adjustment)

EQUIPMENT / ACCESSORIES
? Full enclosure including work area lighting
? Automatic power-operated sliding door
? C-axis
? Tailstock programmable drag function including various center points
? 12-position drum turret
? Turret drive unit
? Chip conveyor
? Coolant system with reinforced pump, approx. 4 bar
? Interface for automation
? Various accessories
? 1 pc. Heimbuch collet chuck SK 80, without collets
? 1 pc. Schunk Rota NCF 315 three-jaw chuck
? 1 pc. Schunk Rota NCF 250 three-jaw chuck
? 1 pc. Schunk Rota NCF 250 two-jaw chuck
? 1 pc. WTO broaching head
? 2 pcs. driven tools CAPTO axial tool
? 2 pcs. driven tools CAPTO axial radial tool
? 3 pcs. driven tools CAPTO radial tool
? 7 pcs. static tool holders
? Installation elements
? Documentation
