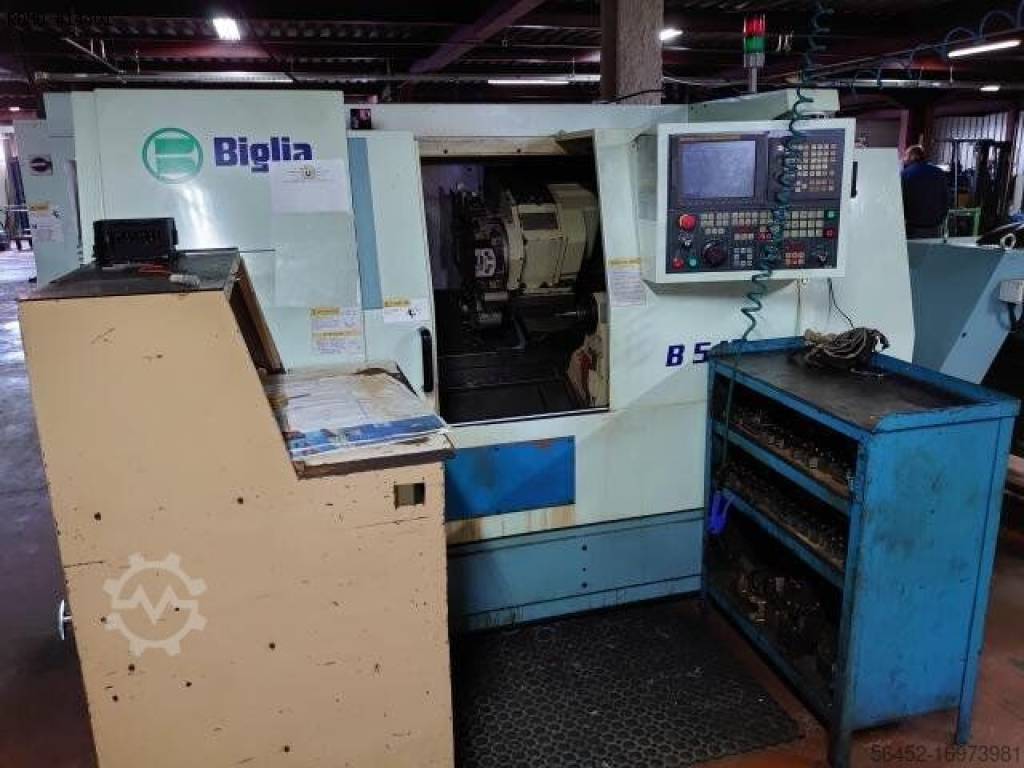

CNC lathe BIGLIA B 545

TECHNICAL DETAILS
- Number of axes : 2
MAIN SPINDLE
- Spindle power : 15 [kW]
- Spindle speeds : 5000 [rpm]
- Max. bar diameter : 45 [mm]
- Max. machinable length : 560 [mm]
- Max. chuck diameter : 220 [mm]
TURRET
- Number of positions : 12
- X/Z stroke : 170 / 560 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
Bwjbx Riouhaf Se Tmqjp
- Machine floor space : 4240 X 2000 [mm]
- Machine height : 1900 [mm]
- Machine weight : 4200 [kg]

EQUIPMENT
- CNC : Fanuc 21i-TB
- Coolant tank
- Chips conveyor
- Tool probe
