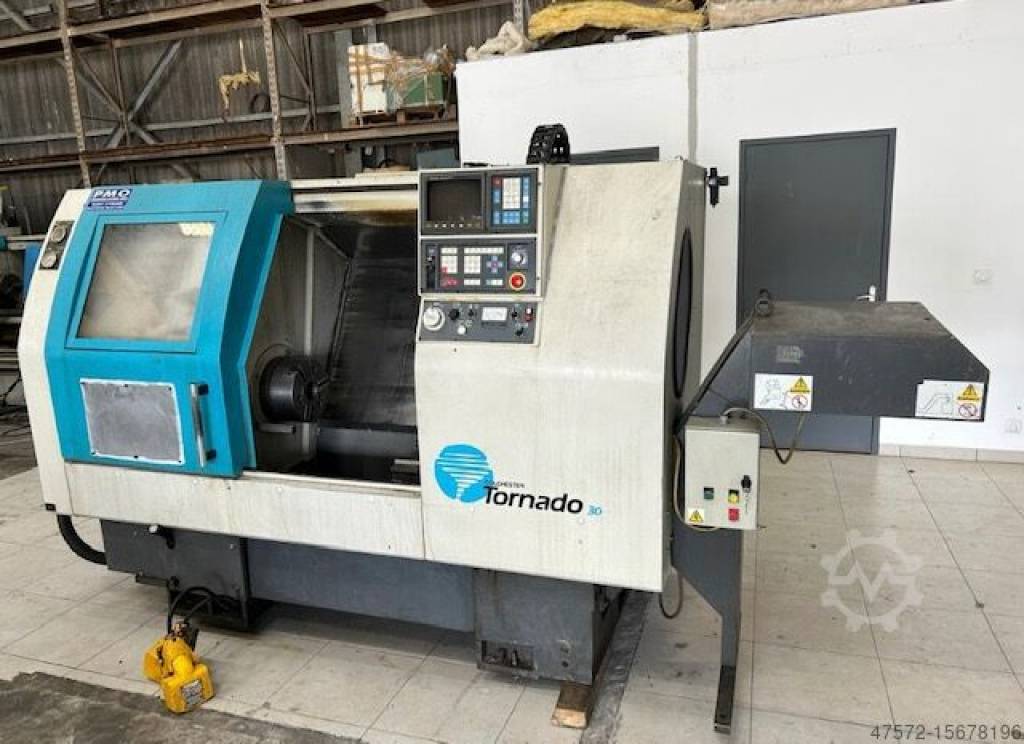

CNC lathe Colchester tornado 300

Machine details
Stock-No. 1105-04005
Type of machine CNC Lathe
Make COLCHESTER
Type TORNADO 300
Year of manufacture 1995
Type of control CNC
Storage location HAGUENAU FRANCE
Country of origin Great Britain
Delivery time immediately
Freight basis EX WORk

Technical details
turning diameter 530 mm
turning length 500 mm
control FANUC OT
total power requirement 22 kW
weight of the machine approx. 3.3 t
Additional information
GOOD MACHINE
CNC CONTROL FANUC OT
cuck taikstock vdi 40 turret 12 p
chip convoyer
echnical information
Swing over bed
530 mm
Swing over cross-slide
330 mm
Distance center to center
500 mm
Max longitudinal travel Z-axis
20 m/min
Max cross travel X-axis
10 m/min
Spindle cone
A2-8
Dia of spindle bore
90,5 mm
Power on the spindle
22 kW
Number of speeds
4000 rpm
Command
Fanuc
Total power needed
53 kVa
Length
3500 mm
Width
1500 mm
Height
2100 mm
Weight
3,3 ton
Bwebx Rer Tr Dyei Tmqsp
Toolchanger
yes
Number of tools
12 tools
Additional info
Chipconveyor
VDI-tooling
