TECHNICAL DETAILS
- Number of axes : 4
MAIN SPINDLE
- Spindle nose : A2-11"
- Spindle power : 26 [kW]
- Spindle speeds : 2500 [rpm]
- Max. bar diameter : 102 [mm]
- Max. turning diameter : 410 [mm]
- Max. diameter on bench : 630 [mm]
- Max. machining length : 1525 [mm]
- C axis indexing precision : 0.001 [°]
TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 265 / 1625 [mm]
- Rapid traverse rate : 24 / 30 [m/min]
- Live tools speed : 5000 [rpm]
- Live tools power : 7.4 / 5.5 [kW]
TAILSTOCK
- Tailstock type : Numérique
- Type of cone : CM4
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 34.58 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 4960 x 2198 [mm]
- Machine height : 2030 [mm]
- Machine weight : 6100 [kg]
Cjbjvxa Hisx Ri Tmqerd
MACHINE HOURS

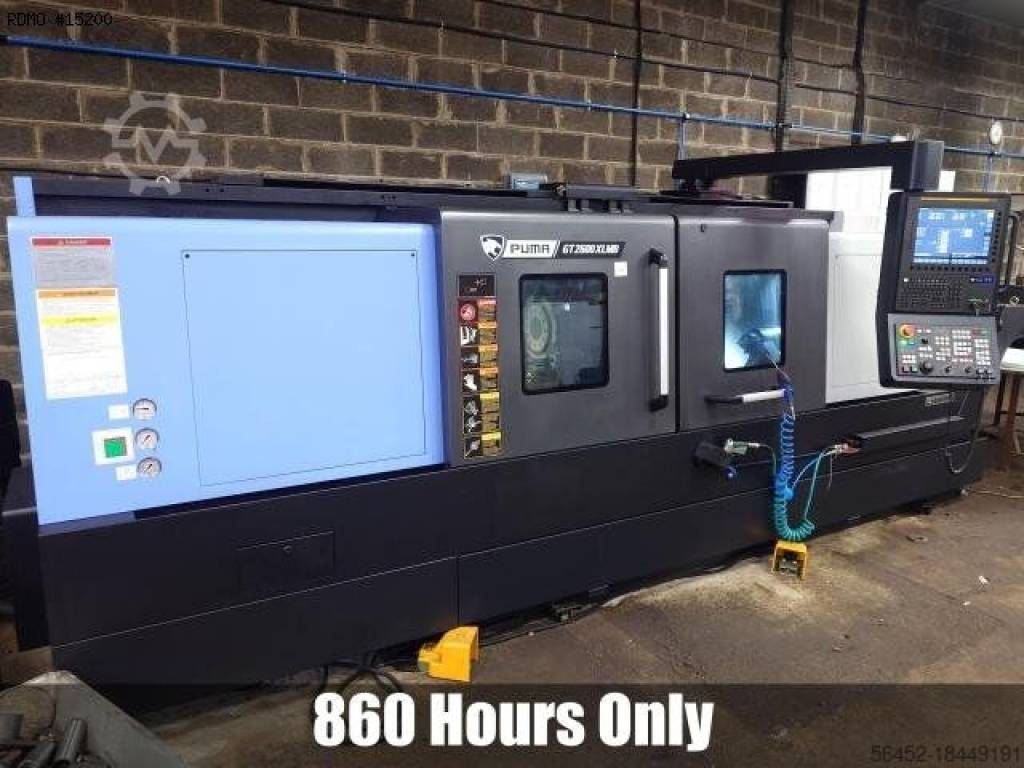

- Number of working hours : 860 [h]
