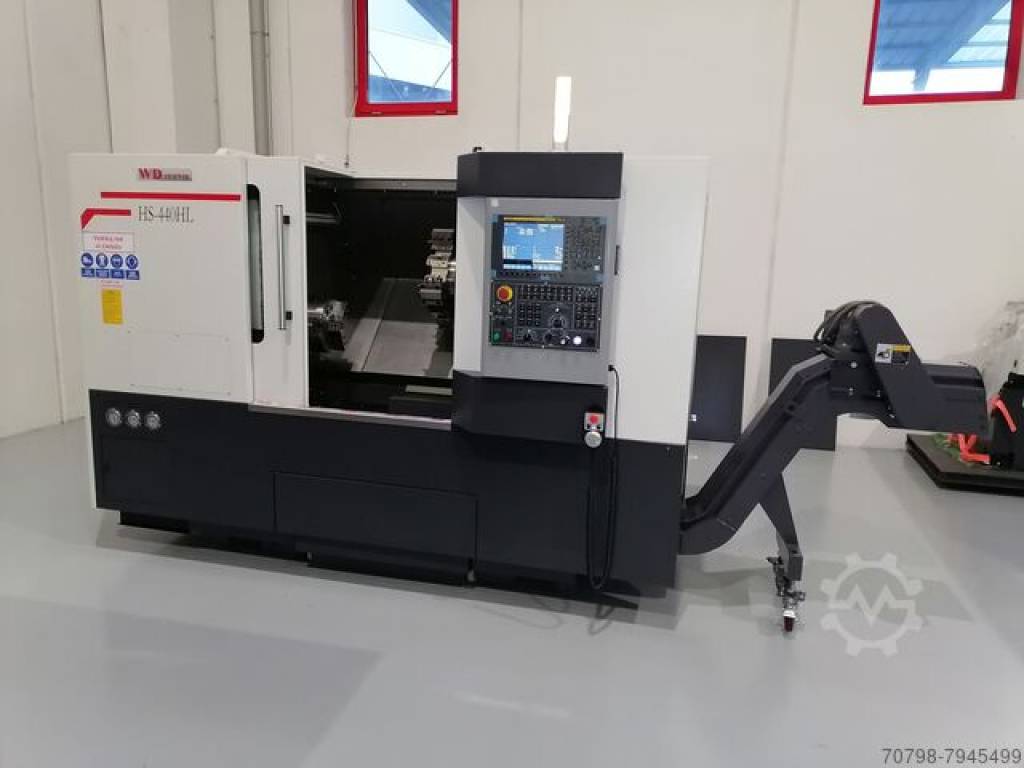

CNC lathe HS-440HL W.D. TEHNIK D.O.O. HS-440HL

HS-440HL CNC lathe

TECHNICAL DATA:
- FANUC 0i-TF Plus control (5)
- spindle servo motor: FANUC 11/15 kW
- X-/Z-axis servo motors: FANUC 1.6 kW
- max. workpiece/turning diameter fi 450 mm / fi 300 mm
- max. turning length 450 mm
- X/Z-axis travel: 165 mm / 500 mm
- working strokes 5 m/min; high-speed strokes 30 m/min
- spindle speed 45-4500 rpm
- Spindle bore / bar diameter: 62 mm / 52 mm
- hydraulic turning head fi 200 mm
- 12-position hydraulic tool turret
- MK4 hydraulic tailstock / tailstock pin travel 130 mm
- linear ball guides in all axes
- machine dimensions (w x d x h) 3950 x 1552 x 1825
- machine weight 4500 kg

STANDARD EQUIPMENT
- fully protected working area with cab
Cjbjiwtk Njx Ri Tmqjrd
- 12-place hydraulic tool magazine
- 4 hole holders
- 8 sets of lathe knife holders
- MK4 swivel tip
- chip conveyor (belt) with container
- automatic lubrication system
- Cooling system with reservoir and pumps
- heat exchanger electrical box
- transformer
- tool cassette for basic machine operation
- levelling screws and shims (6 sets)
- LED signal/work light
