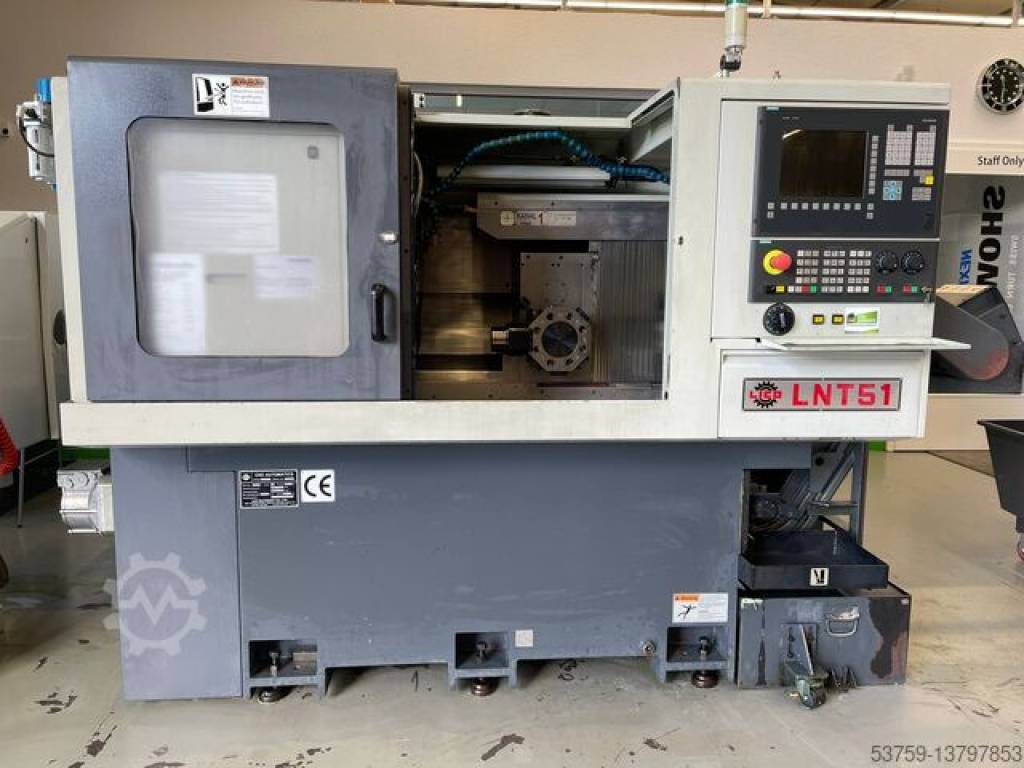

CNC lathe Lico LNT-S 51

Lico LNT-S 51 automatic multi-slide turning center with Siemens 840D S control and a wide range of accessories (tool holders, driven tools, spare parts, etc.) (New price approx. €250,000)

Capacity:
Maximum bar capacity: 51 mm
Maximum turning length: 110 mm with cross slide
Spindle:
Spindle center height: 1,000 mm
Collets type F58 (51 mm)
Spindle motor power: 20 kW
Dksbx Ri Teqgcr Ssq Ijp
Maximum spindle speed: 4,500 rpm
Cross slide:
Travel (X-axis): 70 mm
Travel (Z-axis): 115 mm
Maximum rapid traverse (X/Z-axis): 15 m/min
Maximum feed (X/Z-axis): 5 m/min
Resolution: 0.001 mm
8-fold Tool turret:
Number of tool positions: 8 with standard tool holder N/A
Tool type: VDI-30
Travel in X mm: 80
Travel in Z mm: 165
Switching time (station to station) = 0.28 sec / 180° = 0.6
Machine footprint, weight, and power consumption:
Overall dimensions (L x W x H) mm: 2,215 x 1,315 x 1,835
Machine weight kg: 4,000
Hydraulic oil tank/pump kW: 30 l / 1
Coolant tank l: 180
Coolant pump (1) 0.75 kW / 2 bar
Coolant pump (2) 2.2 kW / 70 bar
Lubricating oil tank/required quantity: 2 liters / consumption: 1 l in 16 hours
Total power consumption kVA 25
