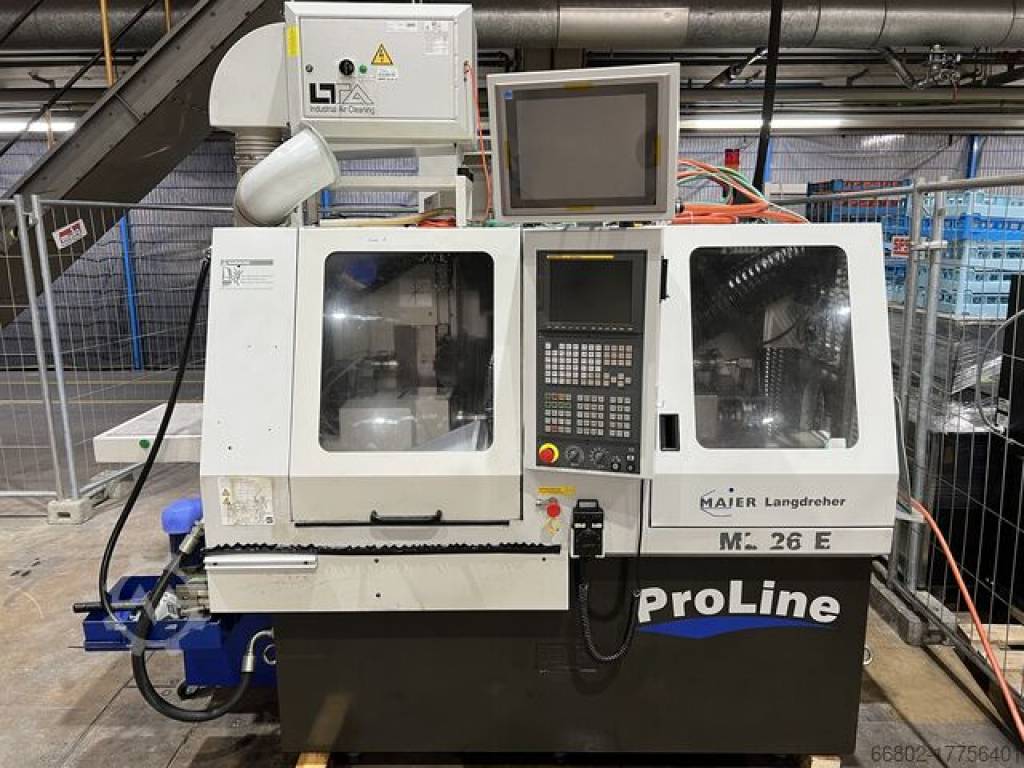

CNC lathe Maier ML 26 E

Maier ML 26 E CNC lathe

TECHNICAL DATA

Number of axes: 11
Spindle bore: 32 mm
Path speed: 32 m/min
Control: Maier Pro GE-Fanuc
Guide bush: 451.001

Main spindle

Clearance: 26 mm
C-axis: Yes
Mechanical indexing 5°: Yes
Headstock stroke: 220 m
Main spindle, speed: 0 - 6000 rpm
Power: 3.7 kW / 5.5 kW (7.5 kW)
Collet chuck: 161E

Counter spindle

Clearance: 26 mm
C-axis: Yes
Mechanical indexing 5°: Yes
Max. travel (Z): 220 mm
Counter spindle, speed: 0 - 6000 rpm
Main spindle, power: 1.1 kW
Collet chuck: 161E

Cross machining

Basic holder for turning rings 5 pcs. 16 x 16: Yes
Number of driven tools: 4
Power of the driven tools: 0.5 kW
Bsbx Rou S Rivsi Tmqsli

Back machining

Drive power: 0.5 kW
Number of tools: 4
of which driven tools: 4
Collets: ER16

Tool turret

Number of tools: 16
Number of driven tools: 8
Drive power: 0.5 kW
C-axis: 360 °
Z-axis: 175 mm
X-axis: 200 mm
Collets: ER16

SCOPE OF OFFER

U.A: (list not exhaustive):

Maier ML 26 E CNC lathe
Oil mist separator
transformer
Chip conveyor
High pressure pump / belt filter system
Fire extinguishing system
LNS bar feeder
Complete operating documentation
