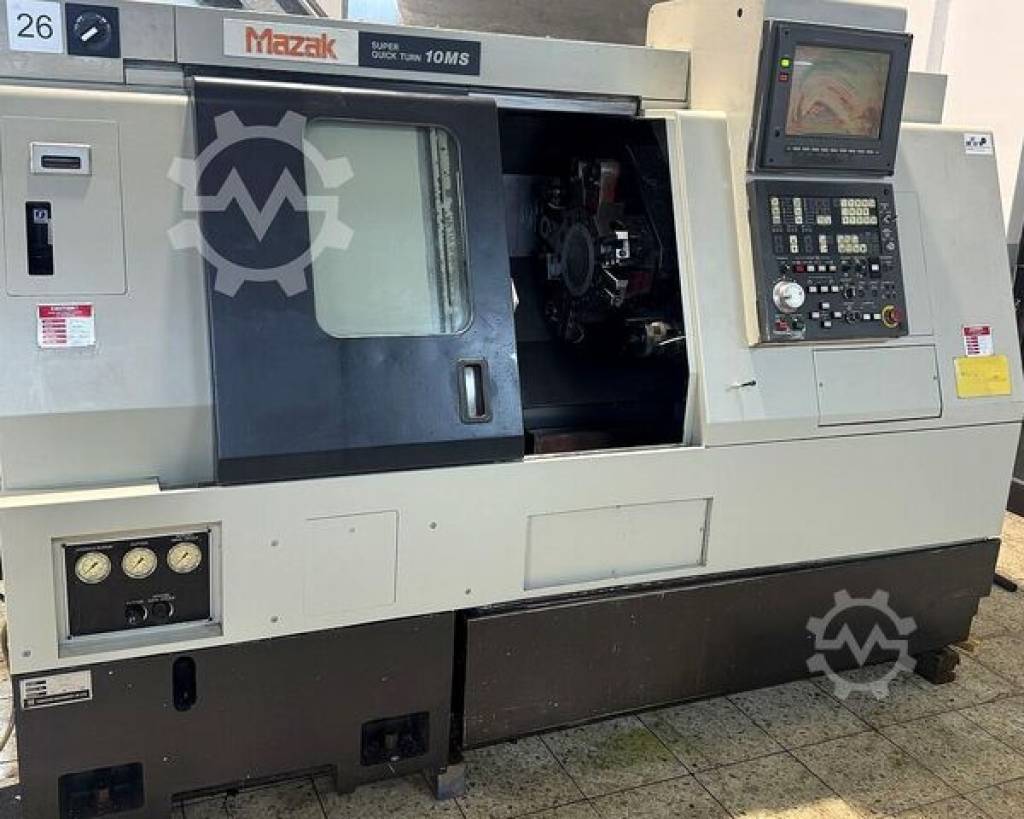

CNC lathe Mazak SQT 10 MS Description
CNC lathe
Mazak SQT 10 MS
Description
TECHNICAL DETAILS
Max. turning diameter: 230 mm
Spindle speed range: 35-6,000 rpm
Main drive power: 11 kW
Second spindle
Drive power: 5.5 kW
Speed range: 180 - 6,000 rpm
Indexing: 72 positions / 5°
Turret
Number of tool stations: 12
Driven tools speed range: 120 - 3,000 rpm
Drive power: 2.2 kW
Travel paths
X-axis: 160 mm
Z-axis: 455 mm
B-axis: 460 mm
Traversing speed
Feed range X/Z-axis: 0 - 5,000 mm/min
C-axis: 1 - 2,000 °/min
MACHINE DETAILS
Total connected load: 43 kVA
Machine weight: 3,500 kg
Machine dimensions (L x W x H): approx. 2.70 x 1.70 x 1.85 m
