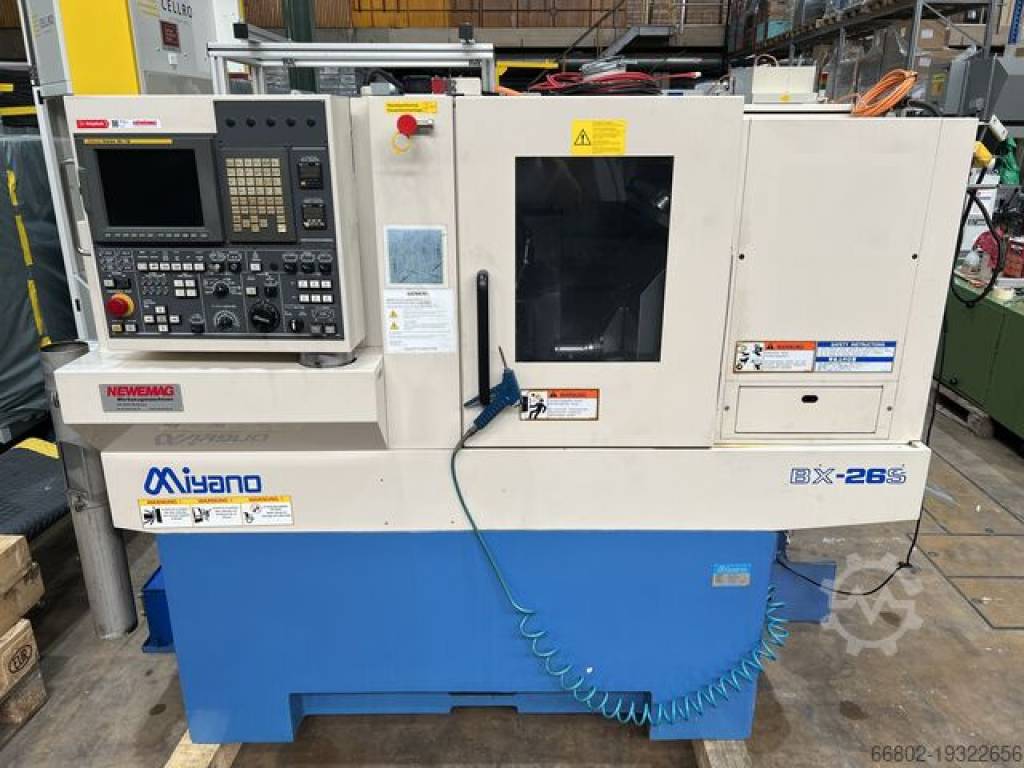

CNC lathe Miyano BX-26S

TECHNICAL DATA

Clamping units

Collet machine with main and sub spindle: 26 mm
Max. turning length with workpiece gripper: 67 mm
Maximum part length: Max. 300 mm / Ø 26
Clamping cylinder L/R spindle: stationary
Max. drilling diameter L/R spindle: Ø 12.00 mm
Max. thread diameter L/R spindle: M8

Spindle

Motor power: VAC 2.2/3.7 kW
Speed range L/R spindle: 80 ~ 8,000 rpm
L spindle travel Z1-axis: 70.00 mm
R spindle travel X2-axis: 180.00 mm
R spindle travel Z2-axis: 238.00 mm

Tool slide

Tool slide: Vertical linear slide
Number of tool positions: 16.00
Number of tool positions slide 1: 6/4
Tool shank size: 16.00 mm
Internal holder tool: Ø 20.00 mm
Travel X1-axis: 135.00 mm
Travel Y1-axis: 260.00 mm
Number of turning tools (L-spindle) X-/Y-unit: 2/2
(Use for L/R spindle) Z-unit: 2+2
Speed range: 100 ~ 4,000 rpm
Turning tool motor: 0.5 kW / 0.5 kW
Powered tools max. drill: 8.00 mm
Turning tool motor max. drilling diameter: M6

Tool slide 2

Tool slide: Vertical linear slide
Number of tool positions: 7.00
Number of tool positions slide 2: 3/4
Tool shank size: 16.00 mm
Internal holder tool: Ø 20.00 mm
Travel Y2-axis: 215.00 mm

Machine dimensions

Machine height: 1,670.00 mm
Bjbowqz Haex Ri Tmqowp
Floor space (WxD): 2,320 mm×1,335 mm
Machine weight: 3,000.00 kg

SCOPE OF SUPPLY

Among others: (list not exhaustive):

Miyano BX-26S CNC lathe (year of manufacture: 2008)
Tool holder (see photo of machine interior)
Fire extinguishing system
Control for high frequency spindle
High frequency spindle
Chip conveyor
Oil mist separator
