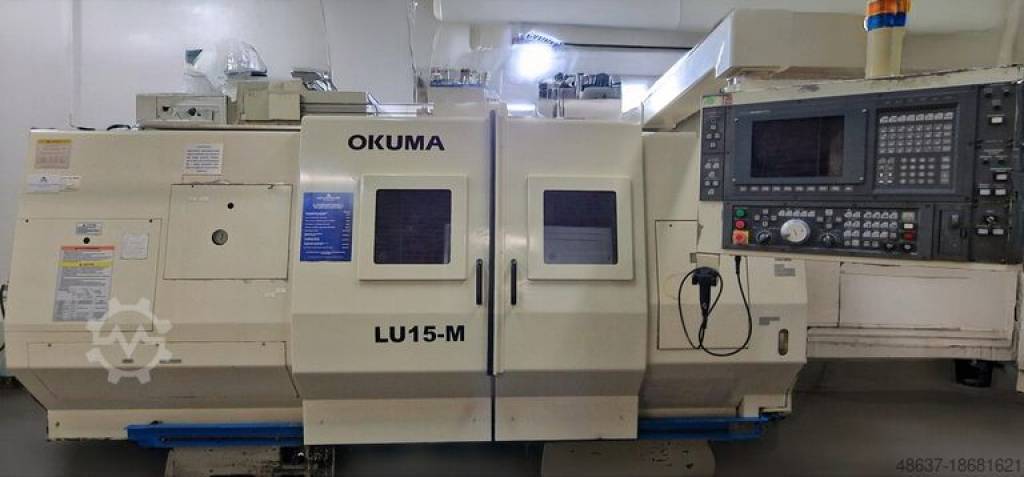

Machine type: CNC lathe
Manufacturer: Okuma
Type: LU15-M
Year of manufacture: 2000
Control: OSP-U100L
Country of origin: Japan
Delivery time: from stock

Long turning length - 1000 mm
Towable tailstock - automatic G152
Partial hollow clamping device

The lathe is in very good condition. The basic and additional equipment enables this used machine to process long turning lengths of up to 1000 mm. Effective production is also possible thanks to the towable tailstock - automatic, the tool breakage / wear control, the partial hollow clamping device, the K pump and the dialog programming (IGF). An optimal machine for economical and reliable production. The machine is user-friendly and can be integrated into production immediately.

Machine equipment
Spindle motor VAC built 22/15 kW
Long turning length – 1000 mm
Towable tailstock – automatic G152
3-jaw chuck Forkardt, diameter 250 mm
Steady preparation B-turret
Partial hollow clamping device
Dialog-IGF
K-pump
Tool breakage/wear control
Chip conveyor
Technical data
Max. turning diameter: 340 mm
Max. turning length: 1000 mm
Travel X-axis: upper 260 mm (170+90); lower 140 mm (90+50)
Travel Z-axis: upper 1,040 mm; lower 1.015 mm
