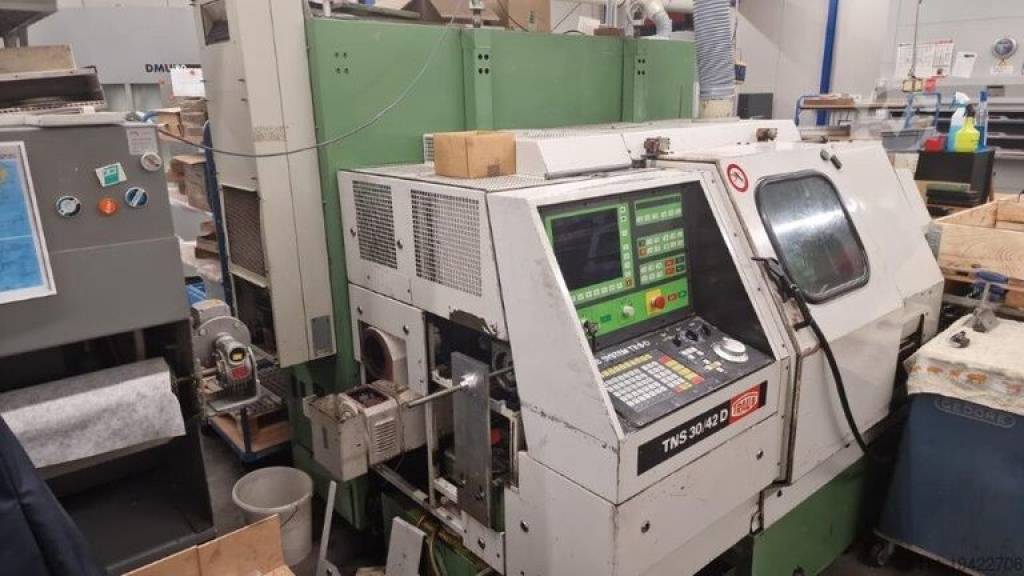

Control: CNC control including color display
Traub TX 8 D with graphical simulation system

TECHNICAL DATA
Turning diameter 140 mm
Turning length 220 mm
Spindle bore (max. bar diameter) 42 mm
Chuck diameter 140 mm
Swing diameter
-over bed 390 mm
-over cross slide 200 mm
Slide travel
-longitudinal 220 mm
-cross 140 mm
Main drive
Drive power (S1/S6 100/40% ED) 16/24.6 kW
Max. speed (infinitely programmable) 5600 rpm
Djbxewu Dtws Ri Tq Iekp
Number of cross slides 2
Rapid traverse X and Z axis 16 m/min
Feed force X/Z axis 2800/3800 N
Number of turrets 2
Tool stations 2x 12
Number of driven tools (upper turret) 6
Drive power (S1/S6 40/10% ED) 1.4/2.7 kW
Shank diameter (DIN 69880) 30 mm
