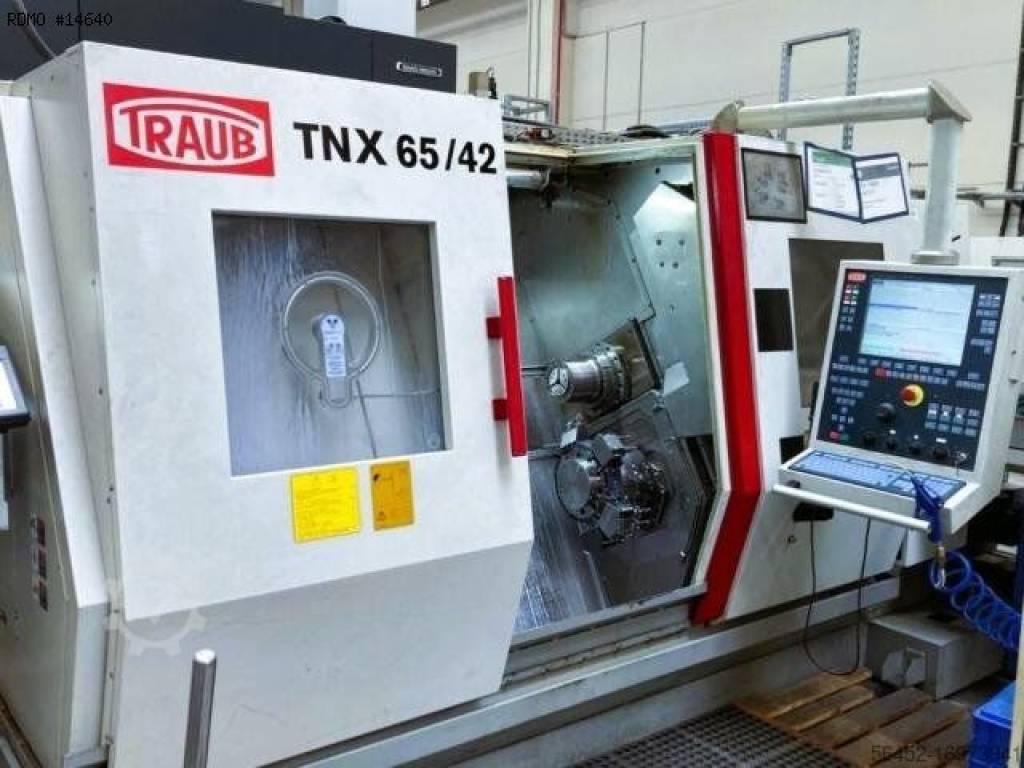

CNC lathe

TRAUB TNX 65

Description

TECHNICAL DETAILS
- Number of spindles : 2
- Number of axes : 12
- Number of turrets : 3
MAIN SPINDLE
- Spindle nose : A2-6
- Spindle power : 24 [kW]
- Spindle speeds : 5.000 [rpm]
- Max. bar diameter : 65 [mm]
- Max. chuck diameter : 175 [mm]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-5
- Spindle power : 28 [kW]
- Spindle speeds : 7.000 [rpm]
- Max. bar diameter : 42 [mm]
- C axis indexing precision : 0,001 [°]
- Travel : 700 [mm]
UPPER LEFT TURRET
- Number of positions : 10
- Number of motorized positions : 10
