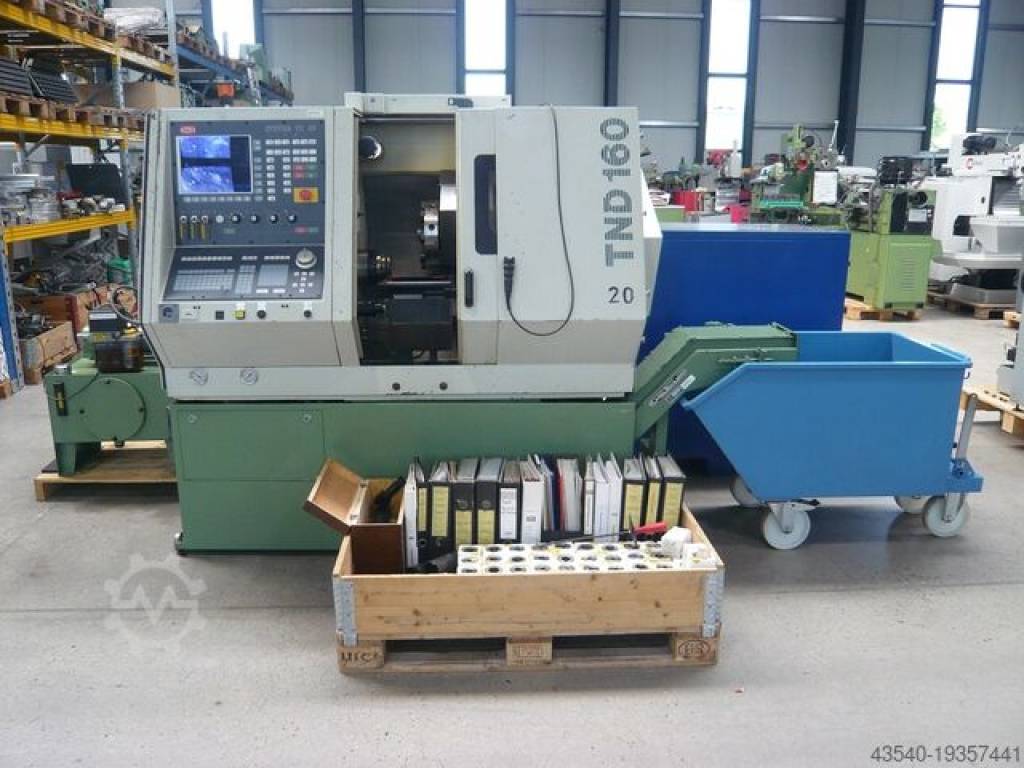

Traub TND 160 CNC – Lathe with TX8F control unit from vocational school
Very good condition!!!

Technical data:

>> Machine No. 983/9 Year of manufacture 1995
>> TRAUB TX 8F control with color monitor
>> 8-position tool turret
>> Swing diameter over cross slide 180mm
>> Swing diameter over bed 360mm
>> Slide travel cross/longitudinal 125/280mm
>> Control: TRAUB TX 8 F
>> Spindle bore: 42 mm
>> Rapid traverse/traverse speed cross 10,000/10,000 mm/min
>> Rapid traverse/traverse speed longitudinal 24,000/10,000 mm/min
>> Tool holder: DIN69880 – VDI30
>> Spindle speeds - stepless: up to 5,000 rpm
>> Tailstock quill taper MT: 3
>> Quill stroke: 75 mm
>> Coolant pressure: 1.5/5 bar
>> Total rated power: 27 kW
>> Machine weight approx.: 2.6 tons
>> Machine dimensions approx.: L 2.08m x W 1.84m x H 1.84 m
