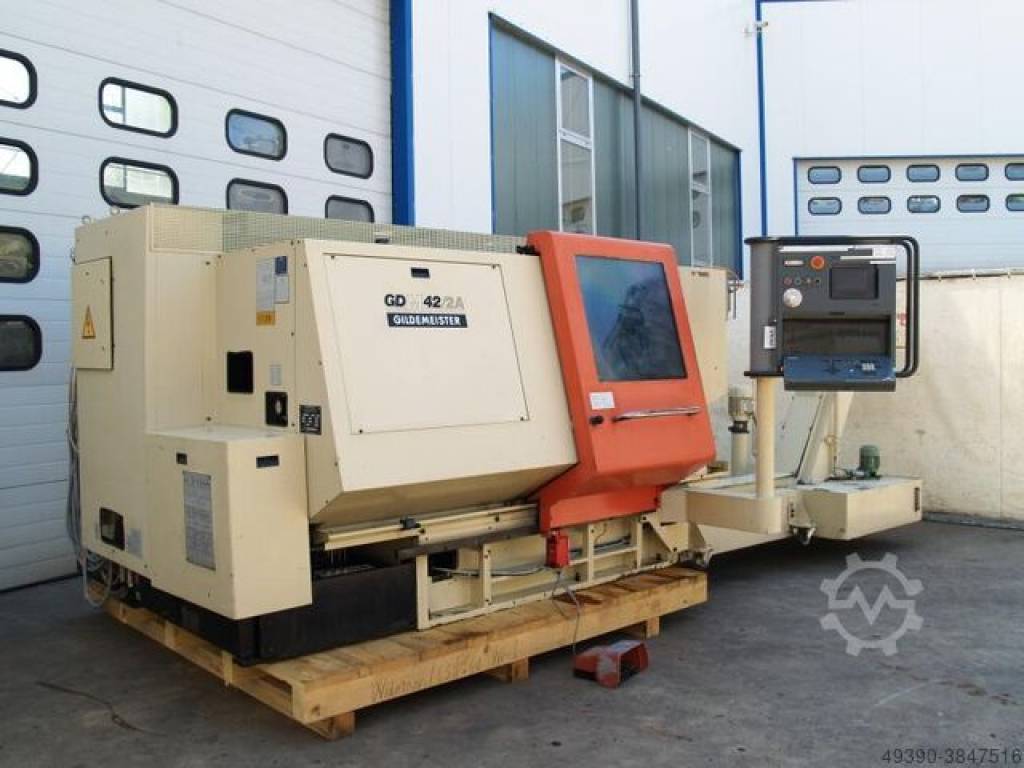

CNC lathe, automatic lathe GILDEMEISTER GDM 42/2A

Spare parts donor or for repair
CNC lathe GILDEMEISTER type GDM 42/2A
CNC control Eltropilot EPL 2
Machine no. 4.5733 Year of manufacture: 1989
Machine not operational – electrical problems
Standard turning diameter: 185 mm
Max. swing diameter: 400 mm
Cross slide travel (X-axis): 190 mm
Longitudinal slide travel (Z-axis): 450 mm
Spindle bore (lathe spindle): 52.7 mm
Bar capacity through draw tube: Ø 42 mm
Feed rate X and Z axes: max. 3,000 mm/min
Bwebxodzqm Ro Ri Tmqep
Spindle speed: 40–6,300 rpm, stepless
Spindle drive motor power: 22 kW
Electrical connection: 400 V, 50 Hz, 45 kVA
- Hydraulic 3-jaw chuck FORKARDT Ø 200 mm
- 12-position tool turret, VDI 40, every second station driven
- Driven tool stations at 6 positions
- Chip conveyor with integrated coolant system
- Electrical cabinet (free-standing)
- 10 pcs. tool holders VDI 40
Machine footprint (overall) L x W x H: 5,000 x 2,500 x 2,100 mm
Total system weight: approx. 5.7 t
Good condition

Transport dimensions:
Base machine footprint L x W x H: 3,000 x 2,300 x 1,900 mm
Base machine weight: approx. 4.8 t
Chip conveyor footprint L x W x H: 4,300 x 1,200 x 1,650 mm
Chip conveyor weight: approx. 500 kg
Electrical cabinet dimensions L x W x H: 2,500 x 550 x 2,000 mm
Electrical cabinet weight: approx. 450 kg
