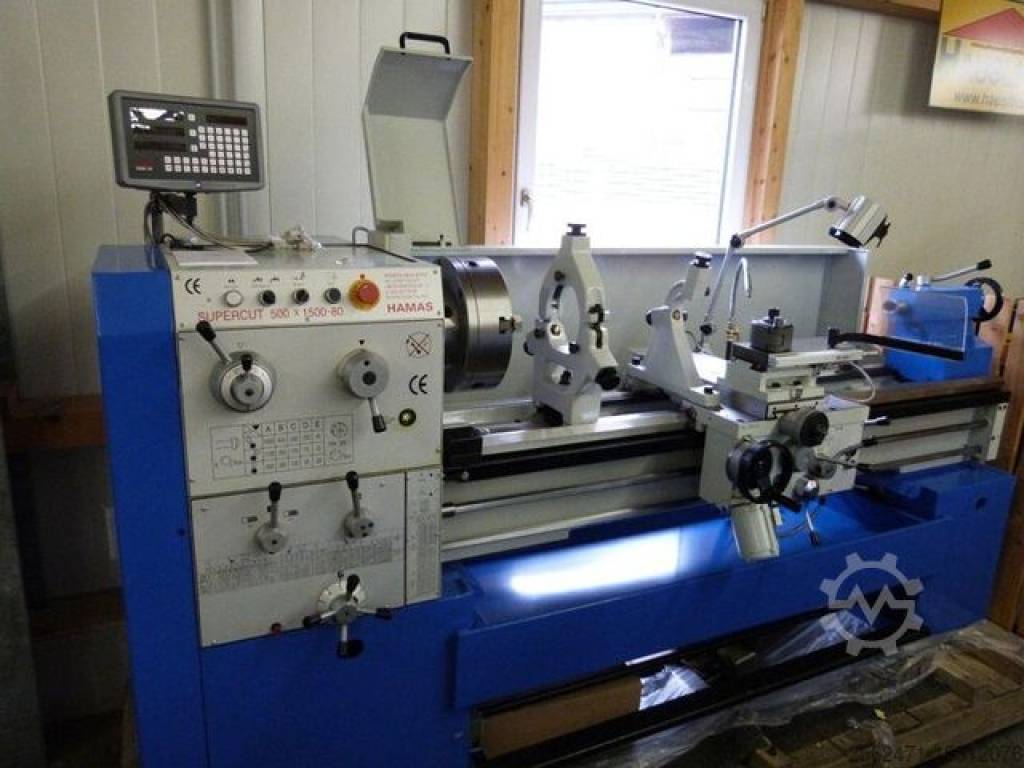

CNC lathe demonstration machine Hans Schreiner MDB-P1500-Digi Description
CNC lathe demonstration machineHans Schreiner MDB-P1500-Digi
Description
Hans Schreiner metal lathe Superut 1500 Digital
Dcebx Ri Tjvr I Rpeq Iji
Technical data:
Centre height 250 mm, centre distance 1500 mm, max. turning diameter 500 mm, spindle mount Camlock 8, hollow spindle 80 mm, tailstock taper MK5, spindle speed 24 to 1600 rpm, speeds 15, main motor output 7.5 kW, max. diameter over cross slide 300 mm, max. turning diameter in the bridge 630 mm, longitudinal feed 0.07 - 4 mm/revolution, cross feed 0.02 - 1.35 mm/revolution, metric. Thread 0.5 - 28 mm pitch, inch thread 56 - 1 threads/inch, module thread module 0.5 - 3.5, thread diametrical pitch 56 - 8, spindle diameter/travel 65/120 mm, weight 1910 kg
CNC lathe demonstration machine
Hans Schreiner MDB-P1500-Digi
Description
Hans Schreiner metal lathe Superut 1500 Digital
Dcebx Ri Tjvr I Rpeq Iji
Technical data:
Centre height 250 mm, centre distance 1500 mm, max. turning diameter 500 mm, spindle mount Camlock 8, hollow spindle 80 mm, tailstock taper MK5, spindle speed 24 to 1600 rpm, speeds 15, main motor output 7.5 kW, max. diameter over cross slide 300 mm, max. turning diameter in the bridge 630 mm, longitudinal feed 0.07 - 4 mm/revolution, cross feed 0.02 - 1.35 mm/revolution, metric. Thread 0.5 - 28 mm pitch, inch thread 56 - 1 threads/inch, module thread module 0.5 - 3.5, thread diametrical pitch 56 - 8, spindle diameter/travel 65/120 mm, weight 1910 kg
Dcebx Ri Tjvr I Rpeq Iji
Technical data:
Centre height 250 mm, centre distance 1500 mm, max. turning diameter 500 mm, spindle mount Camlock 8, hollow spindle 80 mm, tailstock taper MK5, spindle speed 24 to 1600 rpm, speeds 15, main motor output 7.5 kW, max. diameter over cross slide 300 mm, max. turning diameter in the bridge 630 mm, longitudinal feed 0.07 - 4 mm/revolution, cross feed 0.02 - 1.35 mm/revolution, metric. Thread 0.5 - 28 mm pitch, inch thread 56 - 1 threads/inch, module thread module 0.5 - 3.5, thread diametrical pitch 56 - 8, spindle diameter/travel 65/120 mm, weight 1910 kg
