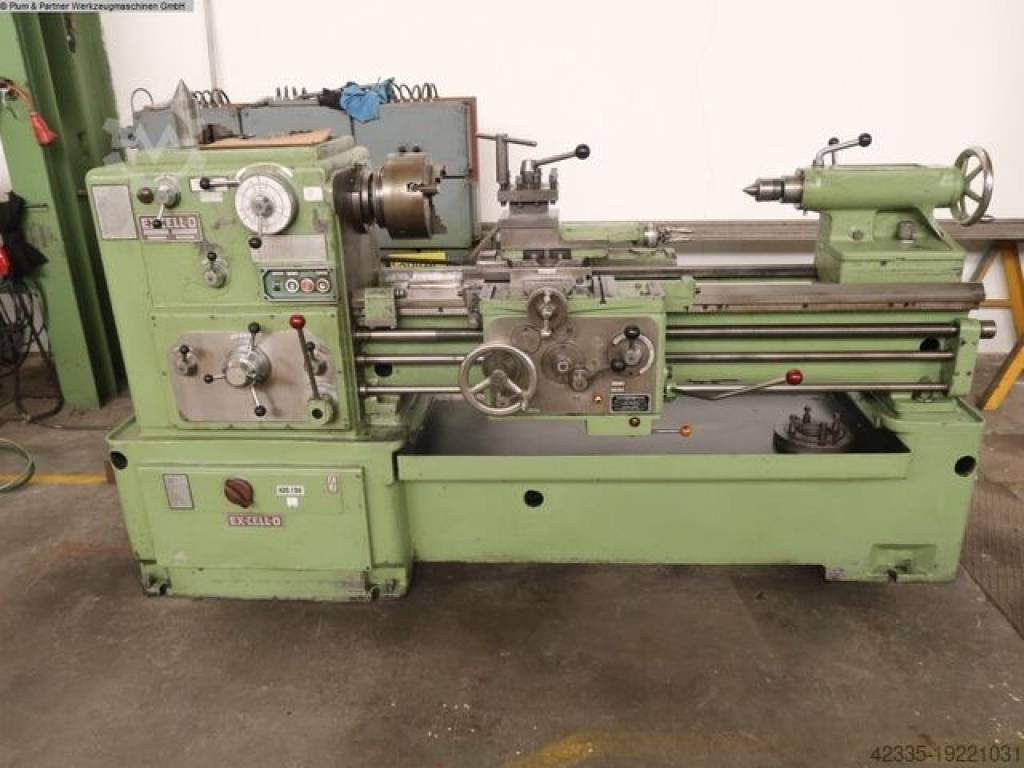

Center Lathe EX-CELL-O DLZ 500 SL Description
Center LatheEX-CELL-O DLZ 500 SL
Description
turning diameter over bed 500 mm
turning diameter over slide rest 310 mm
turning length 1000 mm
centre height 250 mm
turning diameter in gap 550 mm
bed width 400 mm
spindle head DIN 55022 / Gr. 6
spindle bore 65 mm
spindle turning speed range 18 von 35 - 1800 U/min
taper in tailstock MT 5
total power requirement 8 kW
weight of the machine ca. 2400 kg
dimensions of the machine ca. 1,1 x 2,9 x 1,77 m
High-performance high-speed lathe, old German brand, center height 250 mm,
turning length 1000 mm, large bed width results in high rigidity, quick-change
lever for 2 superimposed speeds, spindle operation via clutch, spindle brake,
lubrication via oil pump, thread types metric, inch, module and diametric pitch.
Csbxjwmwvis Ri Tmqord
Machine dealer with own stock of 1600 m². Request more information
