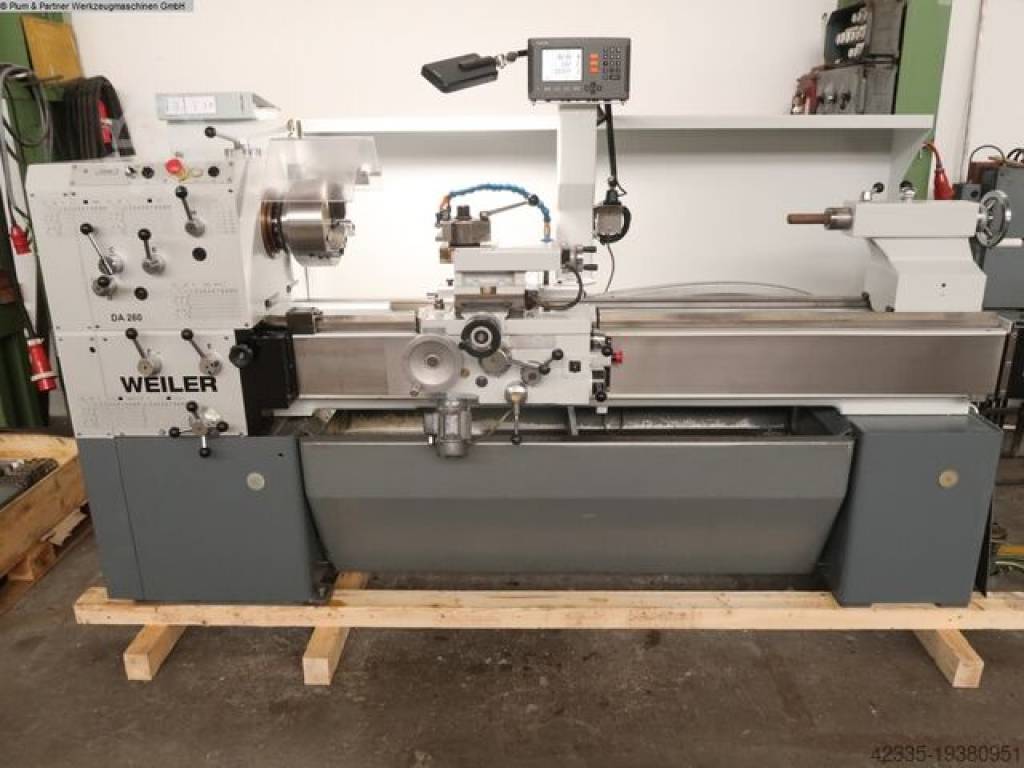

turning diameter over bed 535 mm
turning diameter over slide rest 345 mm
turning length 1500 mm
centre height 260 mm
turning diameter in the slot 560 mm
bed width 330 mm
face slide travel 330 mm
travel of upper support 120 mm
spindle bore 71 mm
spindle head Din 55027, Gr. 6
speeds 12: 44-2000 U/min
longitudinal feeds: 0,072-4 mm/U
face feeds 0,036-2 mm/U
Crjbx Rjwtr A Dji Tmqjd
tailstock quill taper MT 5
tailstock quill stroke 120 mm
metric thread 0,5 - 28 mm
inch thread 56-1 "
max. workpiece weight -without tailstock 200 kg
max. workpiece weight between centres 800 kg
connected load 11,5 kW
total power requirement 7,5 kW
weight of the machine ca. 1,5 t
dimensions of the machine ca. 2,25 x 1,25 x 1,45 m
