Cnc lathe
HWACHEON Hitech 300

Description

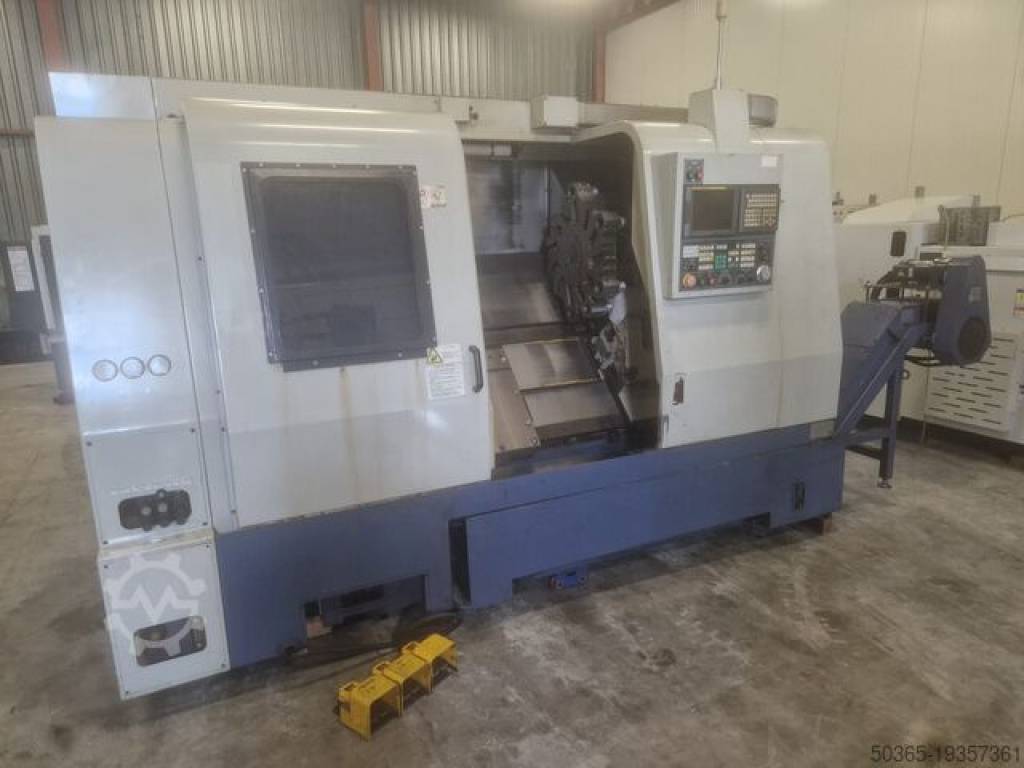

Hwacheon Hitech 300
Yom 2003, Topcondition!
Fanuc 18iT
Swing over bed: 600 mm
Crebx Ri Tqjwr Dzvs Ijd
Swing over saddle: 340 mm
Maximum turning length: 1000 mm
maximum turning diameter: 380 mm
Travels
x axis travel: 280mm
z axis travel: 820mm
Spindle speed: 3200 rpm
Spindle nose: asa a2-8
Chuck size: 250mm
Spindle bore: 90mm
Turret tools position: 12 station.
Tailstock
quill slide. /stroke: 100/120mm
quill taper: size #5

Chip conveyor
Manuals
Tooling
