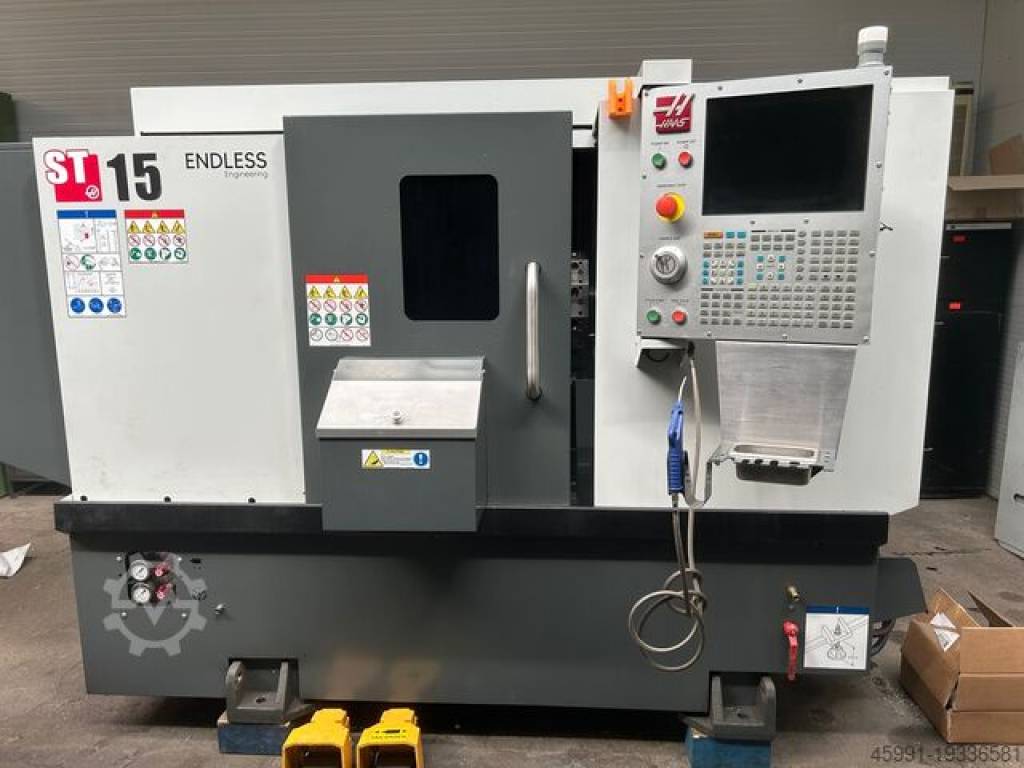

Cnc lathe Haas ST-15

Chuck Size 210 mm
Max Part Swing 419 mm
Max Cutting Diameter 305 mm
Max Cutting Length (varies with workholding) 406 mm
Bar Capacity 64 mm
Travels
X Axis 200 mm
Z Axis 406 mm
Feedrates
Rapids on X 30.5 m/min
Rapids on Z 30.5 m/min
Spindle Nose A2-6
Max Rating 14.9 kW
Max Speed 4000 rpm
Max Torque 203.0 Nm at 500 rpm
Spindle Bore ø 88.9 mm
Tailstock Taper MT3
Hydraulic Quill Travel 95 mm
Manual Body Positioning 508 mm
Turret Number of Tools 12-Station BOT
Cjbswrdpgox Ri Tq Iord
OD vs ID Tools Any Combination (will vary with turret)
Coolant Capacity 114 L
Air Pressure Min 5.5 bar
Drive System Direct Speed, Belt Drive
Spindle Power 20.0 hp 14.9 kW
Weight 3584.0 kg
