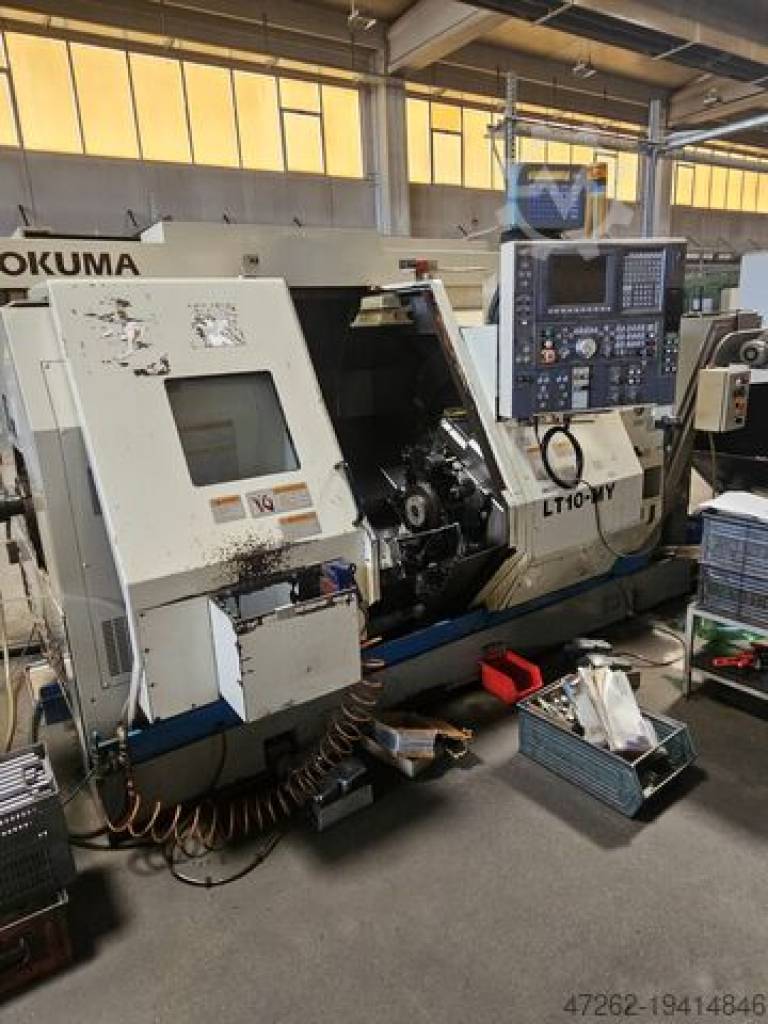

Okuma LT 10 MY
• CNC Control: Okuma OSP-U100L, with full C and Y axis control on both spindles and turrets
• Year of manufacture: 1999
Swing over bed: 400?mm (15.75?)
Max turning diameter: 210?mm (8.27?)
Bebx Ri Tjwut H Tsmqoli
Distance between centers: 960?mm (37.8?)
Spindle bore diameter: 65?mm (?2.56?)
Spindle speed: 50 – 6,000 RPM
Main & sub-spindle motor power: 10 HP (~7.5 kW) each
Turret configuration: 2 turrets × 12 stations, all live-tool capable
X-axis travel (turret 1/2): approx. 167–195?mm (6.57–7.68?)
Z-axis travel (turret 1/2): approx. 700–730?mm (27.56–28.74?)
Y-axis travel (upper turret): approx. 80?mm (±40?mm)
C-axis capability: Available on both spindles
Electrical requirement: approx. 26.8?kVA
Advanced features and options
• Dual spindle: Main and sub-spindle, both with C-axis capability
• Y-axis on the upper turret for 5- to 7-axis machining
• All turret stations support live tooling up to 6,000?RPM
• High-speed, precise milling and turning in one setup
Dimensions and Weight
• Approximate machine dimensions: 3,050?×?2,100?×?1,800?mm (120? × 82.7? × 70.9?)
• Weight: approx. 6–6.5 tons (~13,200 lbs)
