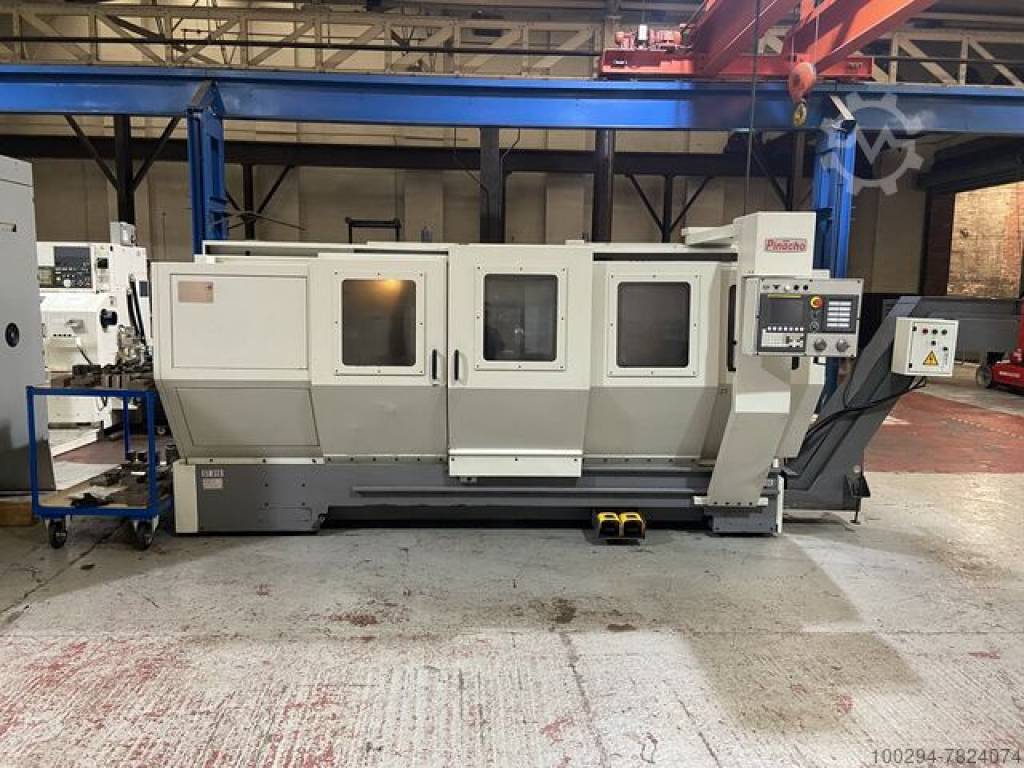

Cnc lathe Pinacho ST-310-105 x 2000

USED PINACHO ST-310-105 x 2000 3 AXIS CNC LATHE
Year of Manufacture 2017 – Serial Number 170022-T

MACHINE CONSTRUCTION & FEATURES

• One Piece Cast Iron Bed Construction
• Hardened & Ground Solid Slideways
• 12 Station Automatic Driven Tool Turret
• Manual Tailstock
• Fanuc 0itf Control with MGI

MACHINE CAPACITIES

Centre Height - 310 MM
Swing Over the Bed - Ø 620 MM
Swing Over the Carriage - Ø 540 MM
Distance Between Centres - 2,000 MM

SPINDLE

Spindle Bore - Ø 105 MM
Spindle Nose - A2-8
Spindle Speeds Max. - 2,500 RPM
Spindle Centre Taper (Bore 105 MM) - 5MT

CARRIAGE

Turret - AUTO V12 VDI30 WITH LIVE TOOLS
Number Of Turret Stations - 8 [12]
Driven Tools Speed - 3,000 RPM
Std. Tool Size (Tool Shank / Boring Bar) - 25 / 40 MM
Working Feedrate (X & Z) - 0 TO 7,500 MM/MIN
X-Axis Rapid Traverse - 15 M / MIN
Z-Axis Rapid Traverse - 12 M / MIN
X-Axis Ballscrew Diameter - 20 MM
Z-Axis Ballscrew Diameter - 40 MM
