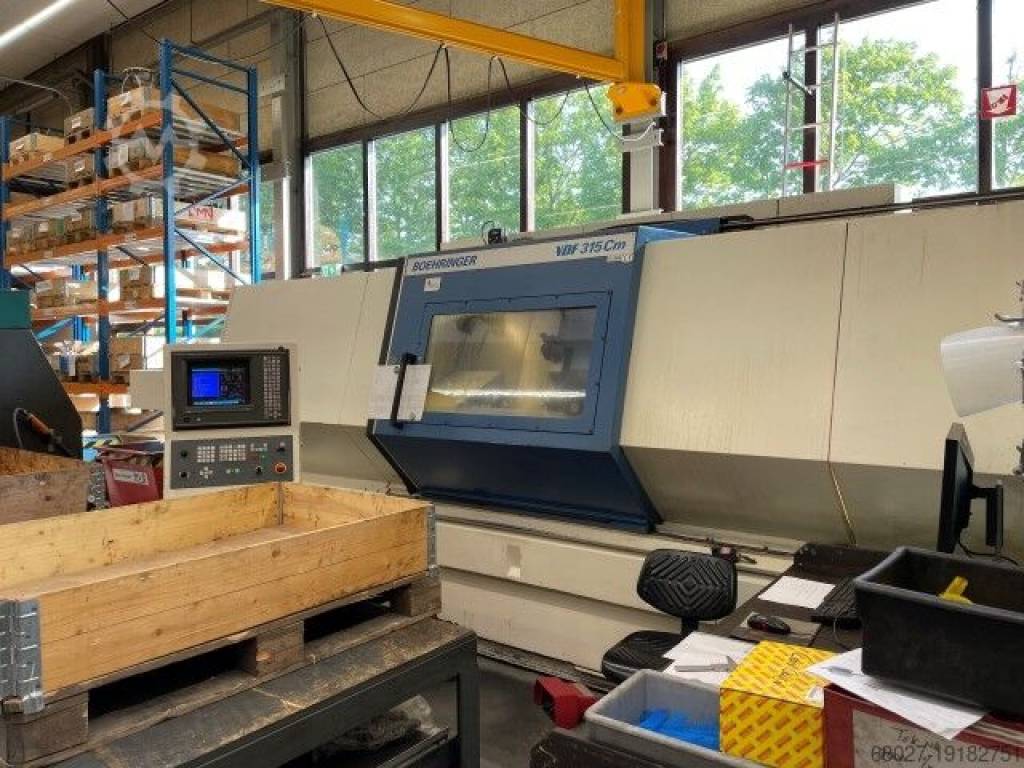

Cnc lathe VDF 315 CM Description
Cnc lathe
VDF 315 CM
Description
turning diameter max. 480 mm
turning length max. 1000 mm
control Fanuc 15 TFB
swing diameter max. over bed 550 mm
turning speed 7 - 3000 rpm
spindle nose 11 DIN 55026
chuck diameter 315 mm
spindle bore 103 mm
Cjbx Riswlqf Uo Tmqjrd
quill stroke 100 mm
rapid traverse 10 m/min
Working speed 0,1 - 10.000 mm/min
number of toolpositions 12 pos.
driven station 6 pos.
power 5,4 kW
total power requirement ca. 50 kW
weight of the machine ca. 11 t
dimensions of the machine ca. 5,5 x 4 x 3 m
turning length max. 1000 mm
control Fanuc 15 TFB
swing diameter max. over bed 550 mm
turning speed 7 - 3000 rpm
spindle nose 11 DIN 55026
chuck diameter 315 mm
spindle bore 103 mm
Cjbx Riswlqf Uo Tmqjrd
quill stroke 100 mm
rapid traverse 10 m/min
Working speed 0,1 - 10.000 mm/min
number of toolpositions 12 pos.
driven station 6 pos.
power 5,4 kW
total power requirement ca. 50 kW
weight of the machine ca. 11 t
dimensions of the machine ca. 5,5 x 4 x 3 m
