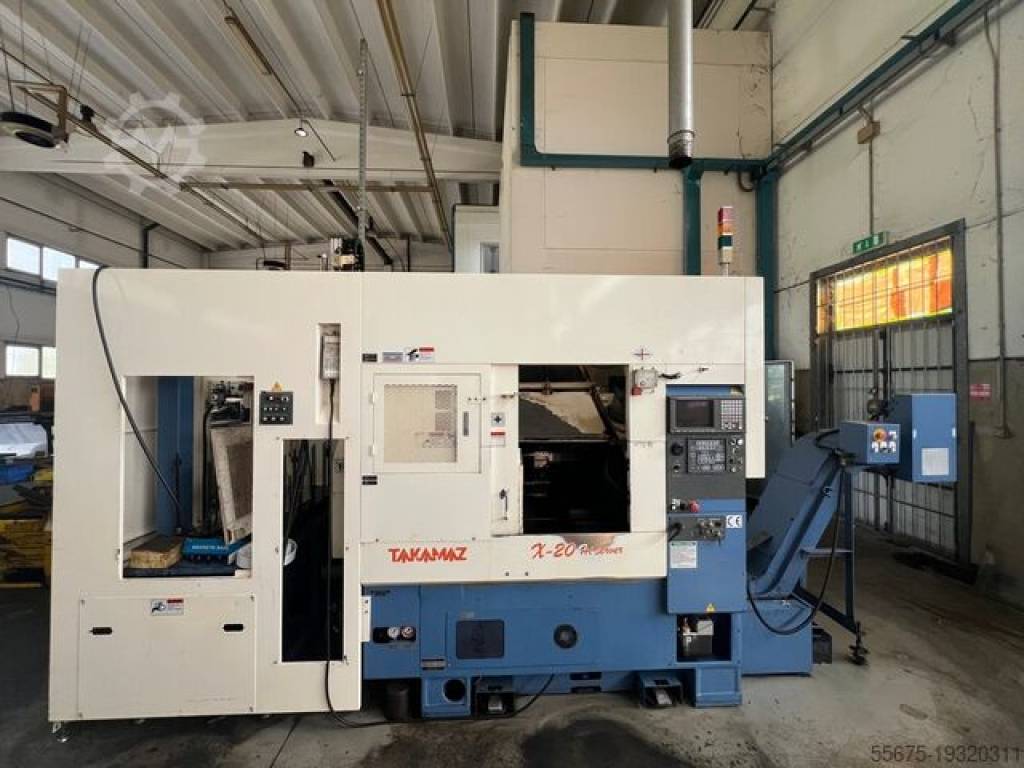

The used TAKAMAZ X20 HI SERVER 2-axis CNC lathe with gantry loader is a fast, medium-sized 2-axis inclined bed CNC lathe with tailstock, equipped with an automatic loading and unloading system for parts with a palletizer with FANUC 18TB CNC; in excellent general condition, year of construction 2001, compliant with “CE” standards

Main features:

ASA 6 spindle nose
Main spindle power 7.5 kW
Main spindle bar passage 51 mm
Turning diameter 260 mm
Turning length 450 mm
Dobjwqxt Dox Ri Tq Iekp
Number of spindle revolutions 4000 RPM
Number of turret tool positions 12
X-axis travel first turret 165 mm
Z-axis travel first turret 500 mm
Rapid linear axes X Y Z 24 m/min
Belt chip conveyor
