Control unit MERLIN GERIN (Schneider Electric) RM6 Description
Control unit
MERLIN GERIN (Schneider Electric) RM6
Description

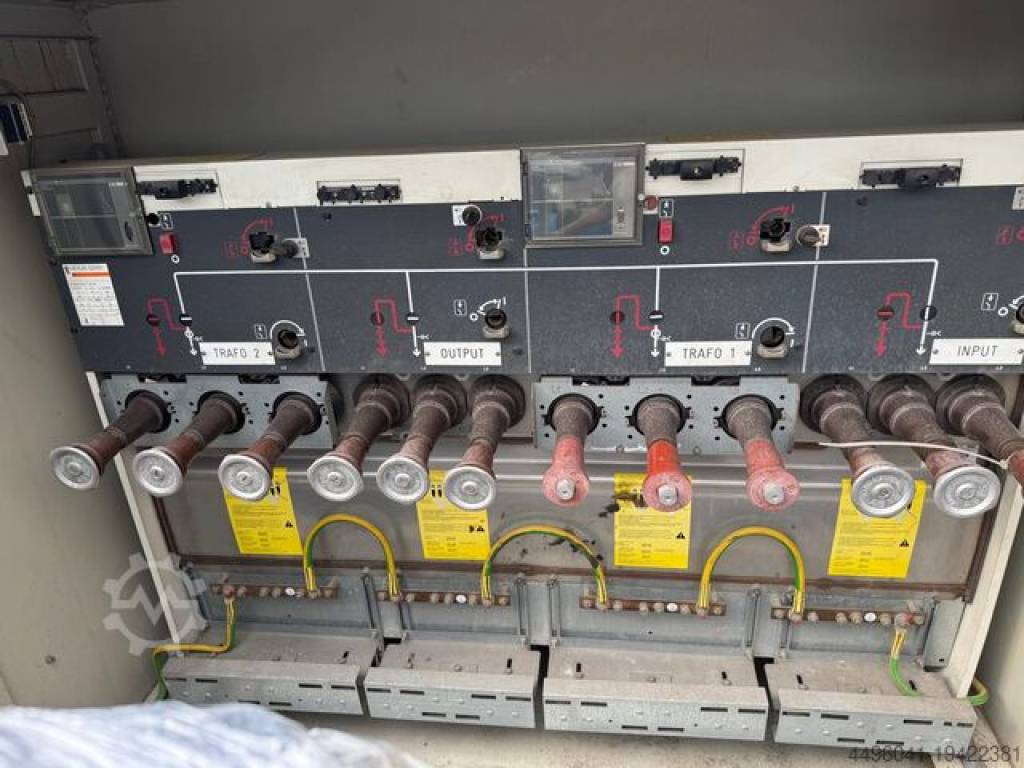

For Sale: MERLIN GERIN RM6 Ring Main Unit (RMU)
Brand: MERLIN GERIN (Schneider Electric)
Model: RM6
Type: NE-D1D1
Year of Manufacture: 2004
Standards: DIN VDE 0670 Part 6 / IEC 298
Technical Specifications:
Rated Voltage (U): 24 kV
Power Frequency Withstand Voltage (Up): 125 kV
Control Voltage (Ua): 230 V
Rated Current (In): 630 A
Rated Short-Time Withstand Current (Ith): 16 kA / 1s
Short-Circuit Making Current (Ima): 40 kA
Switch-Fuse Combination Current: 200 A
Weight: 450 kg
Configuration:
1 Incoming feeder (INPUT)
Debx Ri Tewu Dgqsq Ijkp
1 Outgoing feeder (OUTPUT)
2 Transformer connections (TRAFO 1 & TRAFO 2)
Internal earthing system and protective elements included
Brand: MERLIN GERIN (Schneider Electric)
Model: RM6
Type: NE-D1D1
Year of Manufacture: 2004
Standards: DIN VDE 0670 Part 6 / IEC 298
Technical Specifications:
Rated Voltage (U): 24 kV
Power Frequency Withstand Voltage (Up): 125 kV
Control Voltage (Ua): 230 V
Rated Current (In): 630 A
Rated Short-Time Withstand Current (Ith): 16 kA / 1s
Short-Circuit Making Current (Ima): 40 kA
Switch-Fuse Combination Current: 200 A
Weight: 450 kg
Configuration:
1 Incoming feeder (INPUT)
Debx Ri Tewu Dgqsq Ijkp
1 Outgoing feeder (OUTPUT)
2 Transformer connections (TRAFO 1 & TRAFO 2)
Internal earthing system and protective elements included
