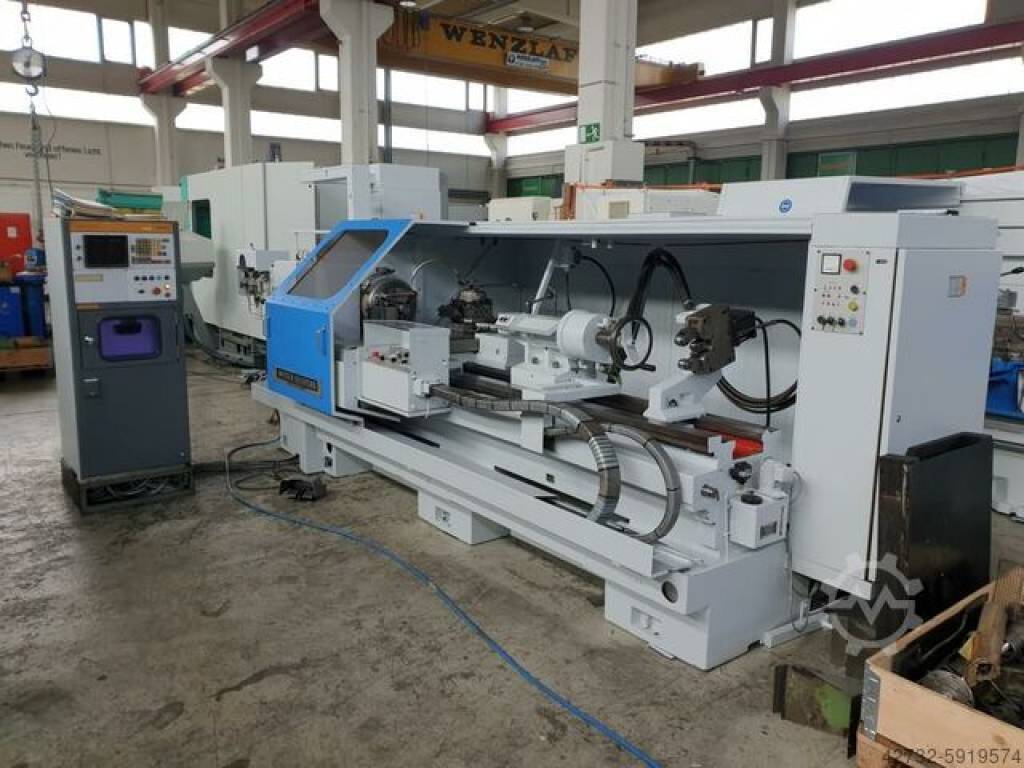

A used very well preserved cycle controlled lathe from Weisser Heilbronn with SIEMENS control.
centre distance 2000 mm
centre height 295 mm
Swing over bed 600 mm
Swing over cross slide 260 mm
Swing diameter in the bend 800 mm
Total length of the crank 375 mm
Bed width 450 mm
Plan travel X-axis 350 mm
Longitudinal travel Z-axis 1850 mm
Spindle nose DIN 55022 size 8
Spindle speed Number 18 14 - 1400 rpm
spindle bore 71,5 mm
Diameter of front bearing 110 mm
feed range 0,01 - 40,95 mm/rev
rapid traverse 8 m/min
Cebogyy I Asx Ri Tmqord
Direct current drive 15 kW 400V 50Hz
Max. permissible torque at the spindle 2500 Nm
Tailstock quill 80 mm
quill stroke 250 mm
inner taper quill MK 5
Length x width x height
Weight of the machine 5500 kg
Accessories
