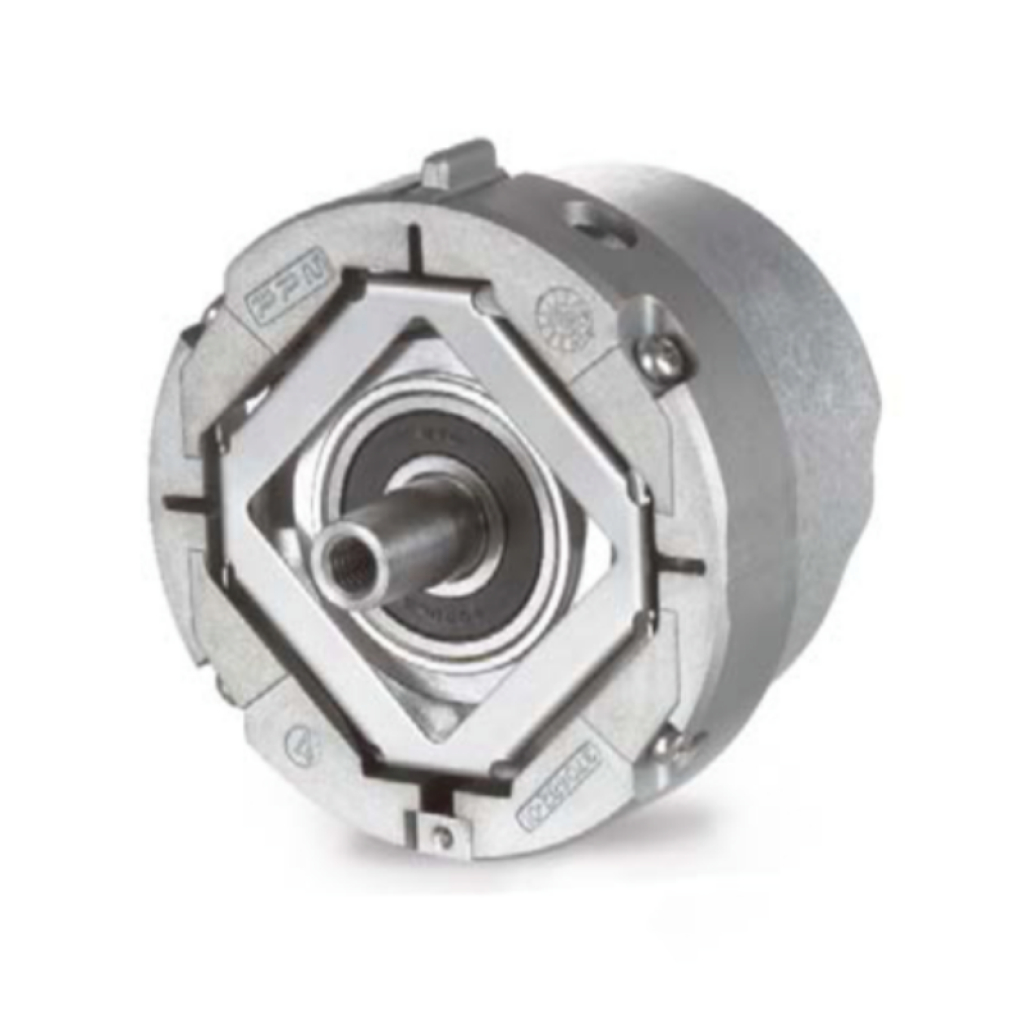

Incremental rotary encoder with integral bearing for mounting by stator coupling
Line count: 2048
Add. circular-scale track: 1 sine and 1 cosine signal/revolution
Output signal: ~1Vpp
Cutoff frequency (-3dB): 210.00 kHz
Power supply: 5V (+-5%)
Coupling version: expanding ring coupling for mating diameter 65mm
Shaft: taper shaft 1:10, functional diameter 9.25mm, back-off thread M10 and M6
Degree of protection: IP 40 (EN 60529)
Operating temperature: -40/+120 ??C
Electrical connection: plug connector, straight, double-row, 14-pin, with locking mechanism and walls
Pin configuration: D319274
Connecting direction: Cable outlet for axial and radial use
