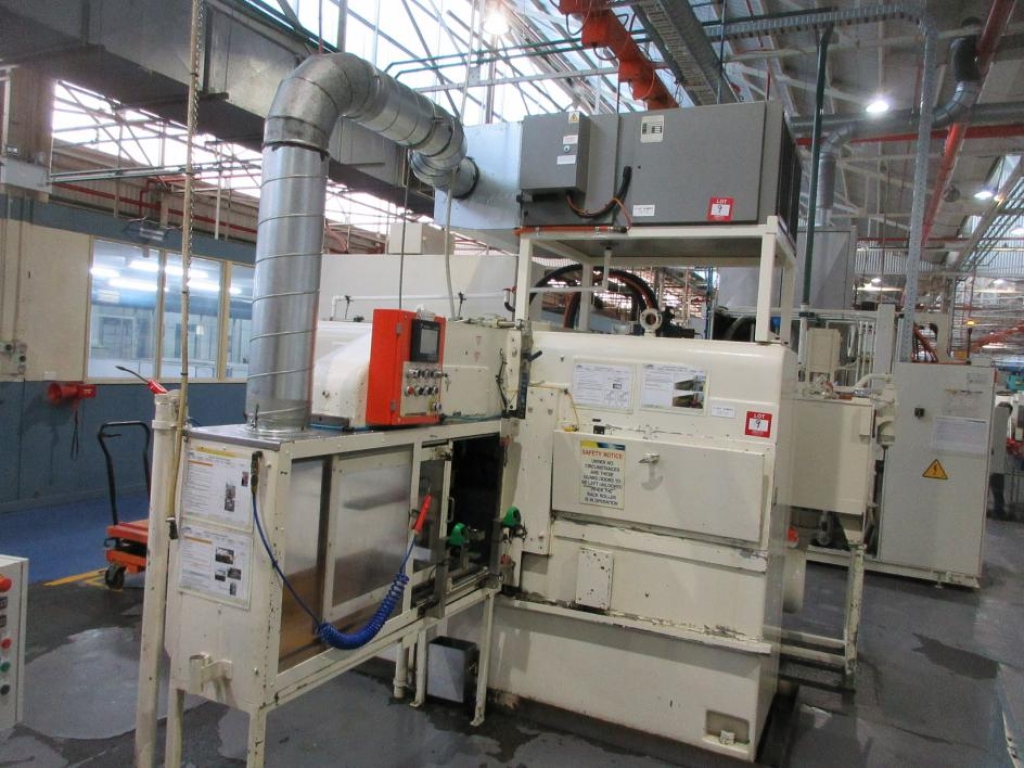

EXCELLO MICHIGAN Rotoflo 3237 Spline Rolling Machine

EXCELLO MICHIGAN Rotoflo 3237 Spline Rolling Machine Description

EXCELLO MICHIGAN Rotoflo 3237 Spline Rolling MachineMachine Overview
MICHIGAN Rotoflo Type 3237 Cold Forming Machine.

Original Serial Number: 4590
ExCello Serial Number 3888
Country of Origin: USA

For the coldforming of profiles for serrations (straight or angular), spiral teeth, oil grooves, threads and knurls.

CAPACITY
Maximum slide stroke:                                   1065 mm
Maximum rack length:                                   915 mm
Maximum profile diameter:                           50 mm
Maximum profile length:                               125 mm
Standard module range:                                 0.3 to 1.25
Motor size:                                                     15 kW
Hydraulic tank capacity:                                 1000 l
Overall floorspace width of machine:         5014 mm
Width of machine:                                           2768 mm
Depth with outboard support:                     4165 mm
Height:                                                           2000 mm
Approximate weight of machine:                 11,700 kgs
