FUJI GALAXY - FD-11 - GENERATORS - D500SSF Description
FUJI GALAXY - FD-11 - GENERATORS - D500SSF
Technical details
Overall weight:5,250 kgFuel type:dieselTank capacity:800 lColor:redPower:400 kW (543.85 HP)Output current:720 AOutput voltage:400 VOutput frequency:50 HzType of output current:three-phaseNominal power:440 kW (598.23 HP)Nominal power (apparent):500 kVATotal length:4,450 mmTotal width:1,600 mmTotal height:2,300 mmMotor speed:1,500 rpmMotor manufacturer:DOOSANType of cooling:water
Description

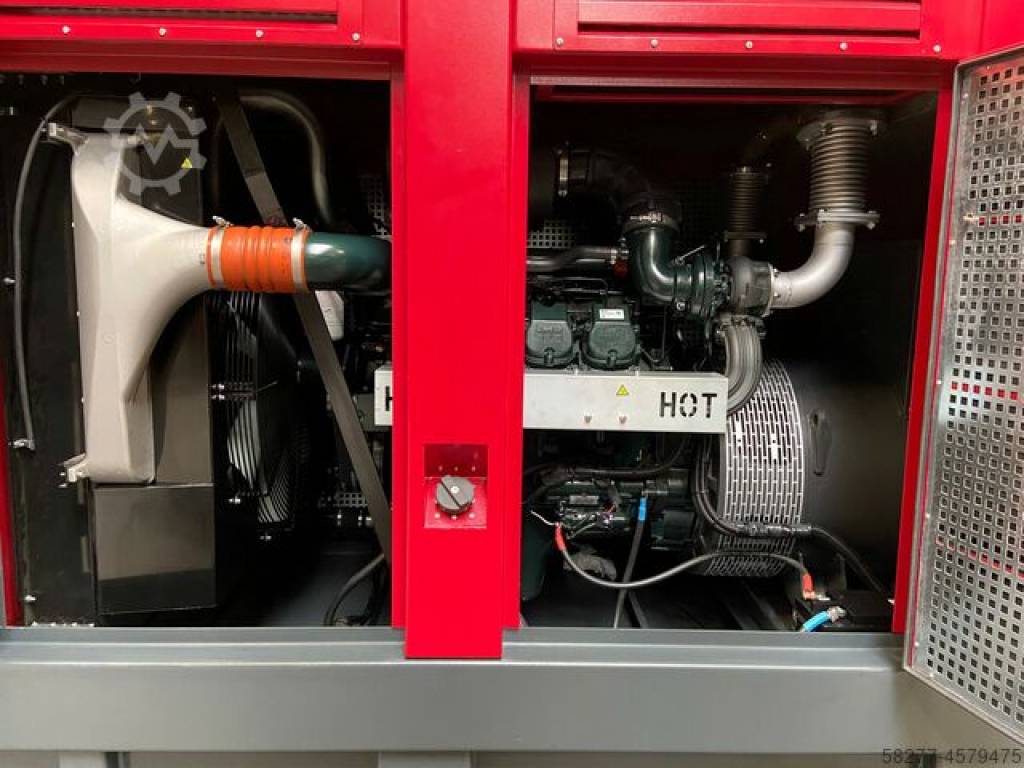

Diesel generator set 500 kVA
Genset type: D500SXF
Ijbx Risfn Efxo Tqljic
Condition: New, 2024
Application: stationary
Emission stage: unregulated
Engine: Doosan DP158LD
Generator: Meccalte ECO40-3S/4
Standby power (ESP): 550kVA/ 440 kW
Prime power (PRP): 500 kVA/ 400 kW
Continuous output (COP): 30 - 80% of the prime output
Nominal voltage: 230/400 V
Nominal frequency: 50 Hz
Speed control: electrical
Voltage regulation: electrical (AVR DER1)
Soundproof (approx. 78 dB/ 7m, can be reduced to 55 dB at an extra charge), weatherproof
Control voltage: 24VDC
Mains form: TN-C
Incl. control unit
Incl. batteries (2 x 110Ah)
Incl. integrated fuel tank (800 L)
Incl. integrated drip tray for fuel and engine fluids
Incl. documentation/manual
Incl. circuit breaker (ABB, 4P) with undervoltage release
Dimensions: 450x160x240cm LxWxH
Dry weight: approx. 5,550 kg
Running time of the fuel tank:
- approx. 8 hours at 100% load 500 kVA,
Consumption approx. 100 l/h
- approx. 11 hours at 75% load 375 kVA,
Consumption approx. 72 l/h
- approx. 17 hours at 50% load 250 kVA,
Consumption approx. 47L/hr.
Warranty: 12 months or 2000 operating hours, whichever occurs first.
You can configure your genset individually with us and order numerous individual options:
- Socket outlet package 16A - 125A with RCD (all-current sensitive)
- Remote control,
- Insulation monitoring
- Extended sound insulation, up to 55 dB/ 7m possible)
- Fully automatic emergency power system with automatic mains/generator switchover available on request.
- Mains parallel operation with load sharing and peak load (ComAP IG 1000 control unit VDE 4510 certified)
- CHP version
- NEA for indoor installation with air ducts, ventilation, etc.
