FUJI GALAXY - FD-11 - GENERATORS - D800SXF Description
FUJI GALAXY - FD-11 - GENERATORS - D800SXF
Technical details
Overall weight:6,500 kgFuel type:dieselTank capacity:1,000 lColor:redPower:640 kW (870.16 HP)Output current:1,152 AOutput voltage:400 VOutput frequency:50 HzType of output current:three-phaseNominal power:640 kW (870.16 HP)Nominal power (apparent):800 kVATotal length:4,900 mmTotal width:1,600 mmTotal height:2,500 mmMotor speed:1,500 rpmMotor manufacturer:DOOSANType of cooling:water
Description

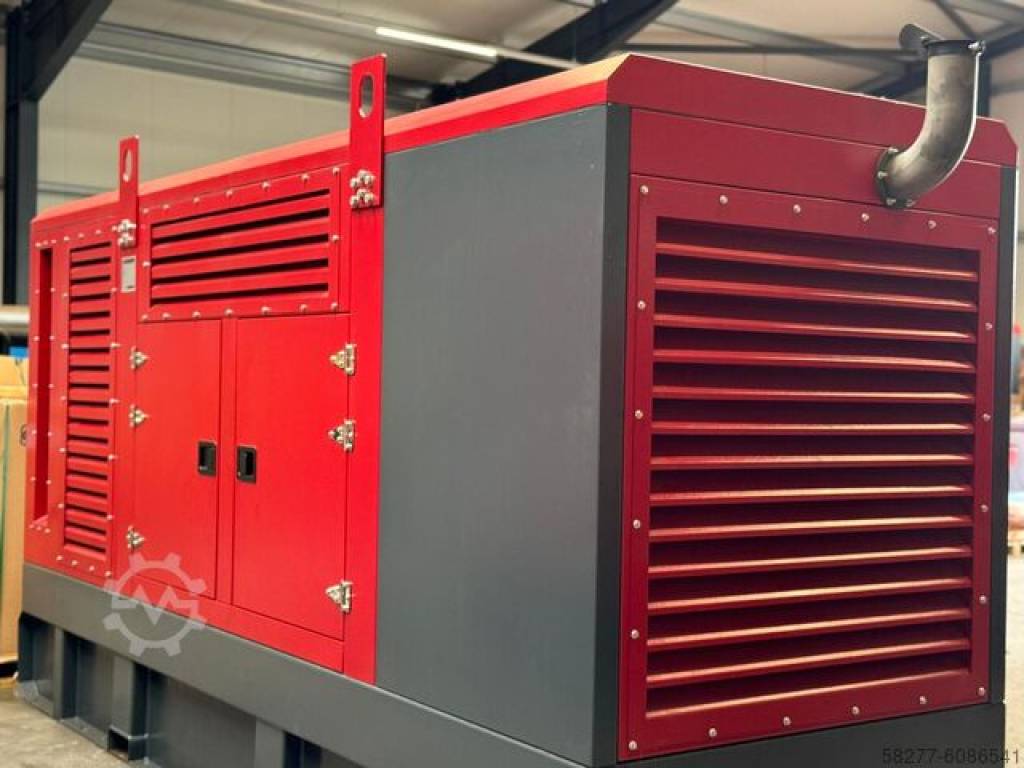

Diesel generator set 800 kVA
Genset type: D800SXF
Ijbx Ri Tot Agwxoqljic
Condition: New, 2024
Application: stationary
Engine: Doosan DP222LC
Generator: Meccalte ECO43-1/S4
Standby power (ESP): 850 kVA/ 680 kW
Prime power (PRP): 800 KvA/ 640 KW
Continuous output (COP): 80% of PRP output
Nominal voltage: 230/400 V
Nominal frequency: 50 Hz
Speed control: electrical
Voltage regulation: electrical (AVR)
Soundproofed (approx. 82 dB/ 7m), weatherproof.
Control voltage: 24VDC
Mains form: TN-C
Incl. control with the following operating modes:
- Island, Mains parallel, Automatic mains replacement,
mains resynchronization, manual, auto
- ComAp IG500
- Mains switch control
- Continuous power Status and fault messages potential-free
Incl. batteries (2 x 110Ah) according to DIN 6280-13
Incl. integrated fuel tank (1000 L)
Incl. integrated drip tray for fuel and engine fluids (110%)
With leakage sensor
Incl. documentation/manual
Incl. motorized circuit breaker (ABB Tmax XT7M, 4P, 800A)
Incl. motor block heater
Internal power cable: H07RN-F
Dimensions: 490x160x270cm LxWxH
Dry weight: approx. 6,850 kg
Running time of the fuel tank:
- approx. 6.5 hours at 100% load 800 kVA, consumption approx. 160 L/hr.
- approx. 9 hours at 75% load 600 kVA, consumption approx. 110L/hr.
- approx. 13 hours at 50% load 400 kVA, consumption approx. 73L/hr.
Special equipment such as sockets, powerlocks, reduced sound insulation or container design available.
