GEA WESTFALIA - CA36 - DECANTER - DP 45N, MOBIL Description
GEA WESTFALIA - CA36 - DECANTER - DP 45N, MOBIL
Description
System: Decanter / centrifuge dewatering system
Manufacturer: Hiller
Model: demonstration machine

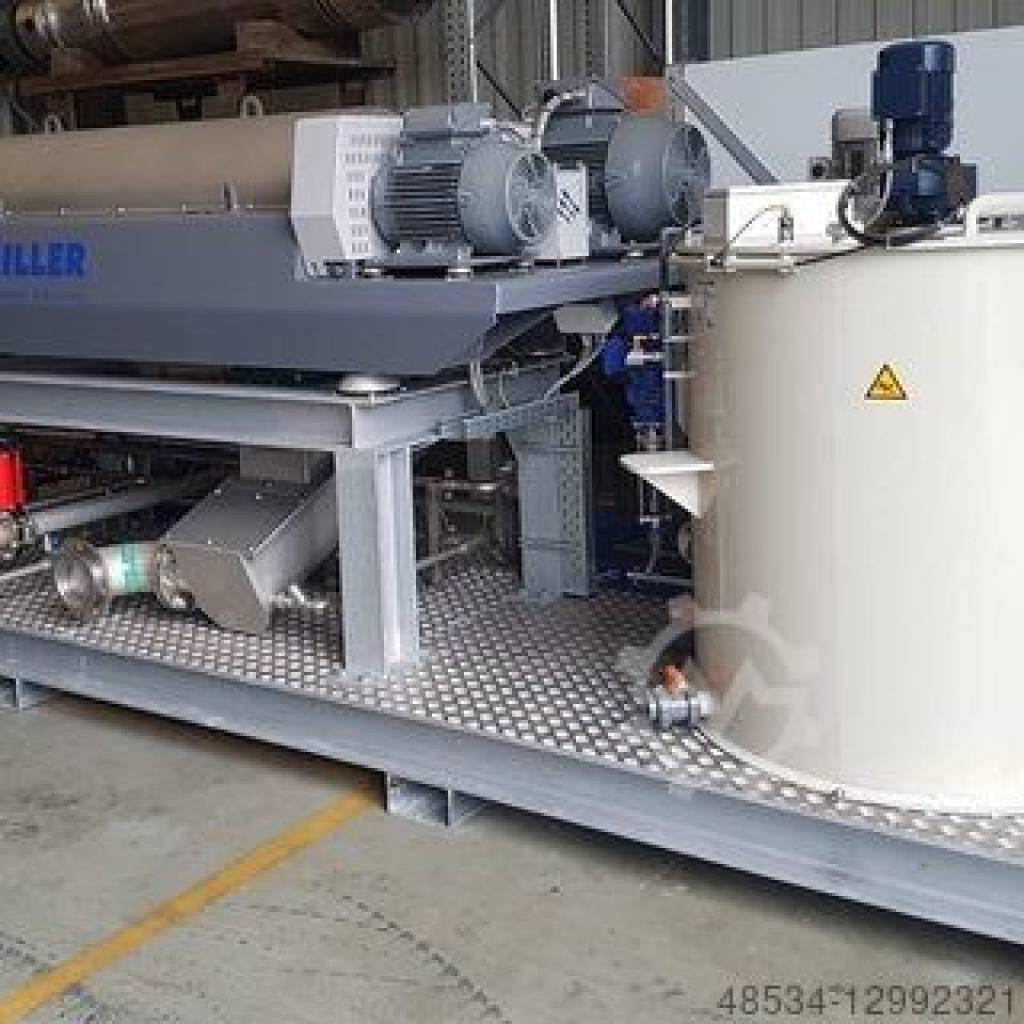

System: Dewatering system as a compact system as a ready-to-connect, operational unit mounted on a platform.
Ijbx Rioppt Ibe Tqlsic
Design: Changeable rack as a bridge with frame structure made of galvanized steel, plug-and-play integration into ongoing operation
Type: DP45N
Mach. no.: on request
Year of manufacture: 2018
Throughput: up to max. 20 m3/h
Max. Speed: 3500 I/min
Acceleration: 3063 x g
Drum inner diameter: approx. 450 mm
Parts in contact with the product: stainless steel
Parts not in contact with the product: steel
Drum length: 1948 mm
Drum material: 1.4392
Screw material: 1.4404/1.4408
Construction: Centrifuge base frame made of steel with foot and support plates for holding and raising the centrifuge
Central discharge: with compensator
Central chute: incl. central control:
Pipe for product-contacting lines: made of stainless steel
Electrical engineering; Hiller-VA / Rittal switchgear wired
Automation device Siemens S7
Dimensions: approx. 5550x2150x2100 mm (LxWxH)
Transport weight: 7500 kg
