LATH MACHINE - CLX350V6 Description

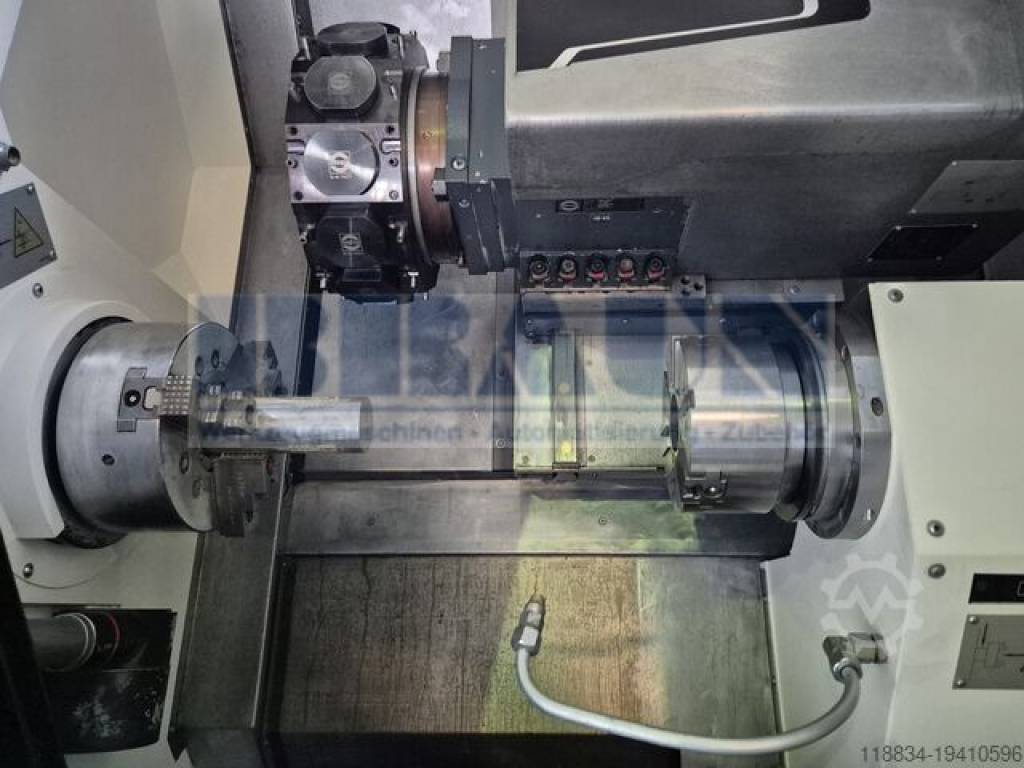

LATH MACHINE - CLX350V6

Description

Machine type: CNC turning center
Model: CLX350V6
Manufacturer: DMGMORI
Control: SLIMline® Multi-Touch Control/Siemens
Year of manufacture: 2022
Location: Germany

Max. turning diameter approx. 320 mm
Standard turning diameter approx. 250 mm
Lajbowunzfex Ri Tpvoc
Max. chuck size approx. 210 mm
Turning length approx. 465 mm
Max. bar diameter approx. 52 mm
Turret stations: 12
X-axis approx. 185 mm
Z-axis approx. 465/550 mm
Footprint L x W x H approx. 3.70 x 1.85 x 1.85 m (with chip conveyor)
Machine weight approx. 4,450 kg

Main spindle: 16.5 / 11 kW, 5000 rpm • Hydraulic 3-jaw chuck 210 mm • Sub spindle A2-5, 12.6 / 16.2 kW, 5000 rpm • Hydraulic 3-jaw chuck 169 mm • Manual tool measuring device • 12-position VDI 30 turret • Driven tools on all stations • C-axis • Y-axis • Chip conveyor • 12 bar coolant system • Linear scales X-Y-Z • Swiveling tool presetting device • Coolant spray gun, 5 bar • External electronic handwheel • Bar feeder interface • Workpiece unload device • Double cartridge filter • Short bar loader
