LATH MACHINE - CTXbeta800V6 Description

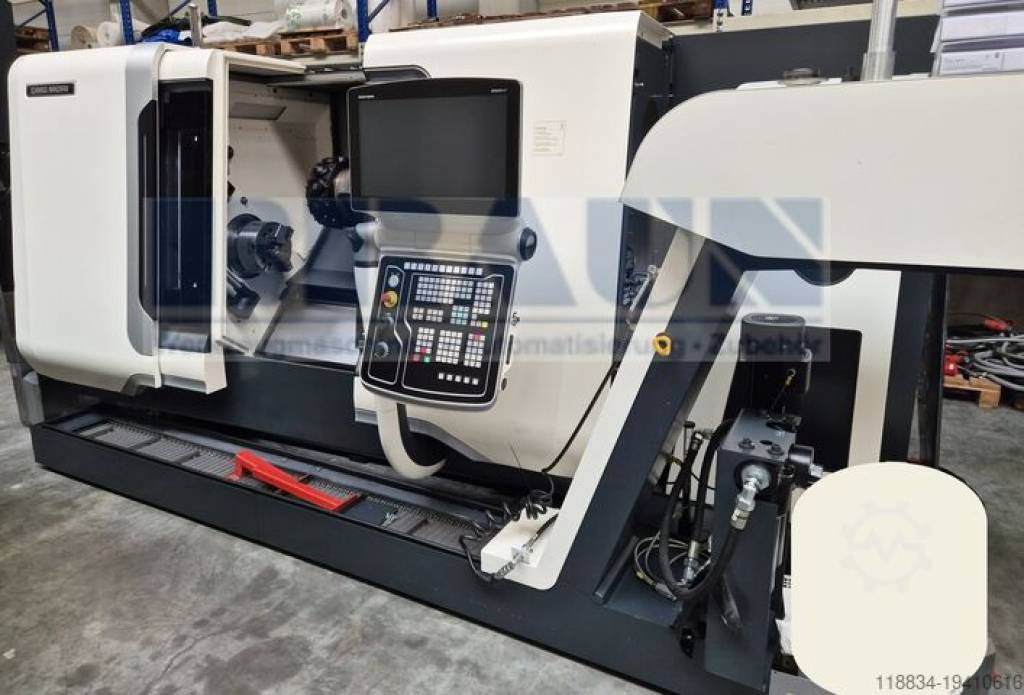

LATH MACHINE - CTXbeta800V6
Description
Machine type: CNC turning center
Model: CTXbeta800V6
Manufacturer: DMGMORI
Control: CELOS Siemens 840D si Operate
Year of manufacture: 2019
Location: Germany
Max. turning diameter approx. 450 mm
Standard turning diameter approx. 270 mm
Max. chuck size approx. 250 mm
Turning length approx. 800 mm
Max. bar diameter approx. 65 mm
Turret stations 12
X-axis approx. 276 mm
Z-axis approx. 830 mm
Tailstock approx. 800 mm
Lebx Riewunz Es Tpvjac
Footprint L x W x H approx. 5.3 x 3.0 x 2.1m
Machine weight approx. 6,200 kg
Technology cycle alternating speed - Y-Axis Parting - Easy Tool Monitor 2.0 - Chuck rinsing device, external -
Chuck rinsing device, external, counter spindle - Clamping pressure adjustment, motorized HSP valves -
Clamping pressure adjustment, motorized GSP valves - Coolant supply through the counter spindle - KSSI compressed air
switchable at the tool carrier - Tailstock function for the counter spindle - Counter spindle ISM 52. Y-Axis - Package
Bar machining at 67 mm - Reinforced coolant pump, 12 bar, 23 l/min - Double switching filter on the chip conveyor -
Hinged belt chip conveyor - Electrical/mechanical connection for oil mist separator - Tool measuring device in
the working area - 3-jaw chuck, BHD 250-66, by SMW - 3-jaw chuck, BHD 210-52, by SMW - Coolant spray gun
