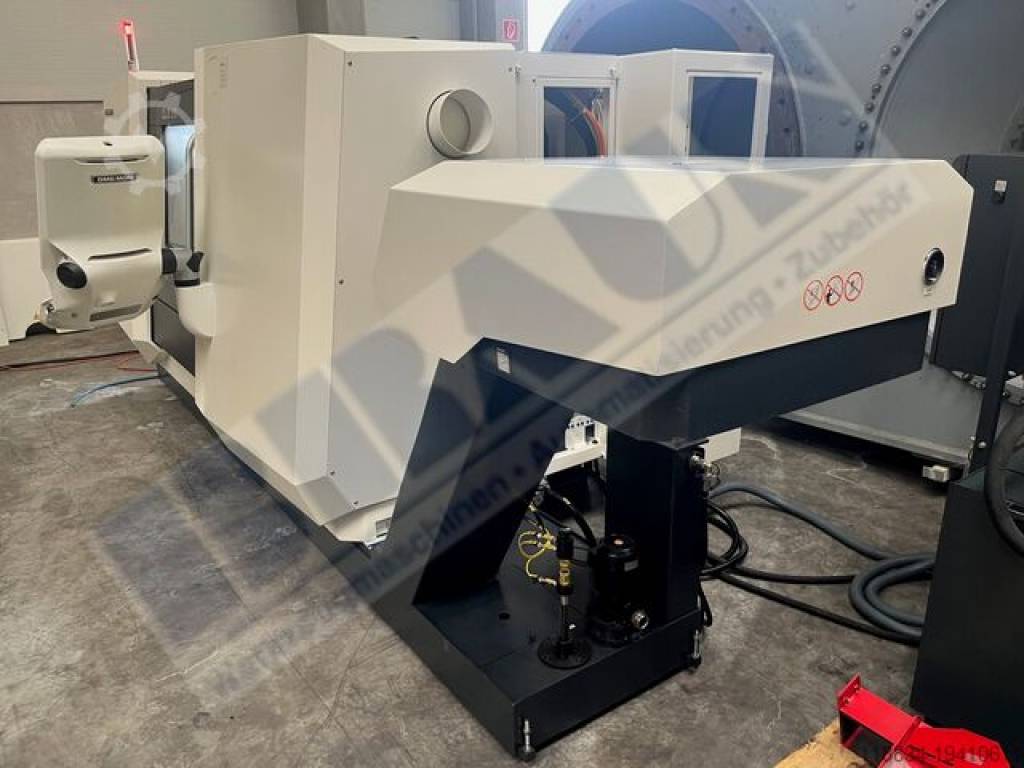

LATH MACHINE - DMG MORI CLX550V4 Description
LATH MACHINE - DMG MORI CLX550V4
Description
Machine type: CNC turning center
Model: CLX550V4
Manufacturer: DMGMORI
Lajbx Ri Tpjwunzxovoc
Control: SLIMline® Multi-Touch Contr./Fanuc
Year of manufacture: 2019
Location: Germany
Turning diameter max. approx. 425mm
Standard turning diameter approx. 315mm
Chuck size approx. 300mm
Turning length approx. 1240mm
Bar diameter max. approx. 100mm
Turret stations 12
X-axis approx. 307mm
Z-axis approx. 1,240mm
Y-axis approx. 120 (+-60)mm
Tailstock approx. 1,200 mm
Spindle speed max. approx. 3,250 rpm
AGW speed max. approx. 4,000 rpm
Rapid traverse X/Z approx. 30 m/min
Rapid traverse Y approx. 22.5 m/min
Main spindle 22/33kW • 3-jaw chuck D 315mm • Robot interface • 12 station turret VDI 40 • Tool drive for all stations • C-axis • Y-axis • Chip conveyor • Coolant pump 8/20 bar • 4-way indicator light • Automation package • Automatic sliding hood, electric • Connection piece for oil mist separator • Electric handwheel • Y-axis • Preparation for steady rest
