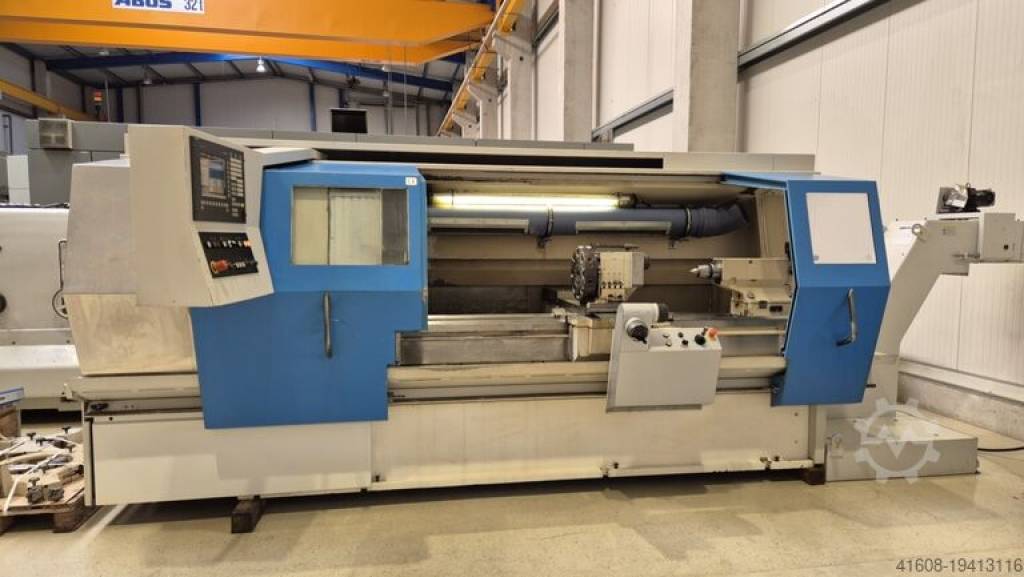

LATH MACHINE - DUS 560 ti x 1500 Description
LATH MACHINE - DUS 560 ti x 1500
Description
Technical details
turning diameter 570 mm
turning length 1500 mm
control Siemens SINUMERIK 810D
weight of the machine ca. 5,2 t
dimensions of the machine ca. 6648 x 2735 x 1973 mm
Additional information
Centre height 570 mm
Centre height over flat track 280 mm
Diameter over bed 570 mm
Diameter over cross slide 365 mm
x-axis 345mm
x-axis feed max. 2500 mm/min
z-axis feed max. 5000 mm/min
x-axis rapid traverse max. 5000 mm/min
z-axis rapid traverse max. 10000 mm/min
x-axis feed force 7,100 N
z-axis feed force 12500 N
Feed control 0% - 120%
max. workpiece weight from front edge of clamping device 400 kg
with tailstock 1000 kg
with tailstock and 1 steady rest 1300 kg
with tailstock and 2 steady rests 1600 kg
Main spindle:
Spindle / bore / spindle Ø in the front bearing DIN 52027 - A 8 / Ø62 / Ø100
Inner taper of the main spindle metric 70
Drive power 25 kW 60%; 20 kW 100% ED
Torque max. 1800 Nm / 1400 Nm
2 gear stages
Speed range 3-2500 rpm
Speed range gear step 1: 3-500 rpm
Speed range gear step 2: 15-2500 rpm
Tool:
SAUTER 8-station turret: Ø40
Turret no.: 0.5.480.516-089768 ComNo. 06.09216
Tool holders DIN 69880 / Ø50
Lathe tool - cross-section according to DIN 770 h x w 32 x 25
Tailstock:
Quill diameter 100 mm
Inner taper quill MK 5
Quill travel 190 mm
Cooling:
frequency controlled 1 bar/10 ltr - 4 bar/20 ltr; 2-stage programmable
Dimensions:
max. machine size (without chip conveyor) 4300 x 2131 x 1973 mm
Space requirement (incl. chip conveyor) 6648 x 2735 x 1973 mm
