LATH MACHINE - GMX 400 linear Description

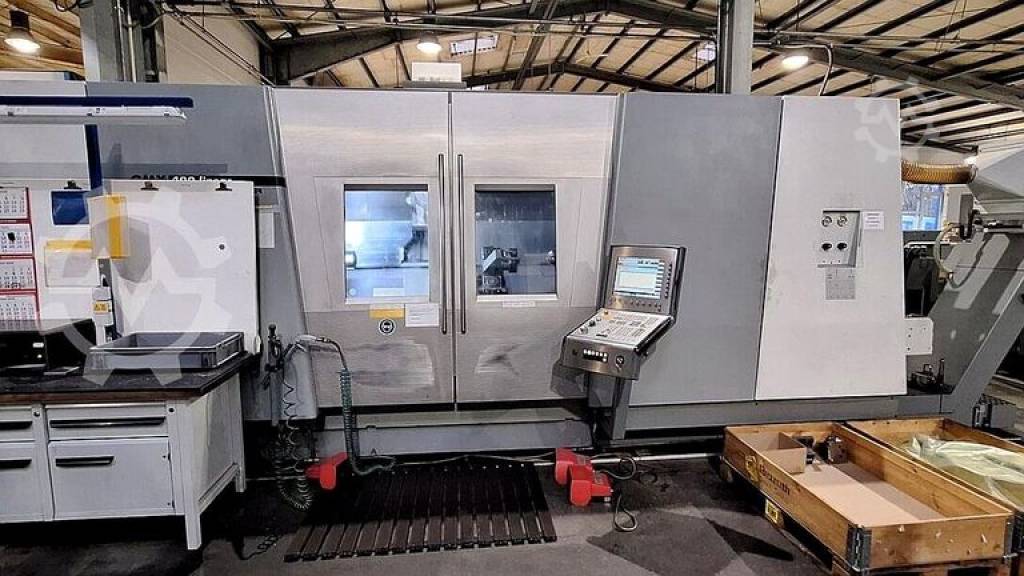

LATH MACHINE - GMX 400 linear
Main drive left
Max. drive power: 45 kW
Max. speed: 4,000 rpm
Max. torque: 750 Nm
C-axis torque: 600 Nm
Main spindle left
Chuck diameter: 200–400 mm
Bar diameter: 90 mm
Upper slide
Rapid traverse speed X/Y/Z: 40/24/70 m/min
Slide travel X1/Y1: 550/110 mm
Turning/milling spindle
Tool holder: HSK 63 A
Max. spindle speed: 12,000 rpm
Spindle axis indexing: 1°
B-axis
Swivel range B1: 120°
Resolution: 0.001°
Tool magazine
Number of tools: 60
Tool length / max. quantity: 200/38–350/22 mm
Tool weight G1/G2: 6/10 kg
Tool diameter: 80–140 mm
Tool turret
Number of tool stations: 12 pos.
Tool holder: 40 mm DIN 69880
Number of driven tool stations: 12 pos.
EQUIPMENT
- Milling spindle
- Counter spindle
- Tool turret
- Y-axis
- B-axis
